Home /Products/Phased Array Radar/High-speed FPV Full-airspace Millimeter Wave Defense Radar with 300m Detection Range 360° Azimuth Coverage and 10ms Real-time Response

High-speed FPV Full-airspace Millimeter Wave Defense Radar with 300m Detection Range 360° Azimuth Coverage and 10ms Real-time Response

1set
MOQ
Negotiable
Price
High-speed FPV Full-airspace Millimeter Wave Defense Radar with 300m Detection Range 360° Azimuth Coverage and 10ms Real-time Response
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Frequency Band: K Band
Detection Range: 300m（RCS:0.01m2）
Angle Coverage Range: Azimuth: 0 °~360 °, Pitch: 0 °~90 °
Speed Measurement Range: 1m/s～100m/s
Tracking Targets: ≥ 128 Batches
Accuracy: Distance: <1 M, Azimuth: <2 °, Elevation: <2 °
Highlight:

300m Detection Range Millimeter Wave Radar

,

360° Coverage Phased Array Radar

,

10ms Response Defense Radar
Basic Infomation
Place of Origin: China
Brand Name: Radartone
Model Number: LT-FPS100
Document: LT-FPS100 Four-sided Phased...ar.pdf
Payment & Shipping Terms
Delivery Time: 1.5 month
Payment Terms: T/T
Supply Ability: 50 set/3 momth
Product Description
High-speed FPV Full-airspace Millimeter Wave Defense Radar

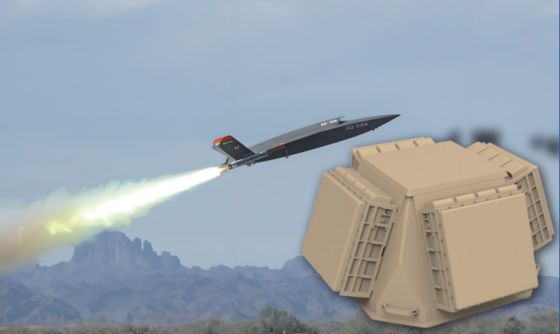

LT-FPS100 Four-sided Phased Array Radar
Product Introduction:
Wolf Warrior Tactics typically launch attacks within 300 meters, exploiting general radar's close-range blind spots (approximately 200 meters) and slow response times (about two seconds). They utilize fiber-optic-controlled, high-speed aircraft (100 m/s) for individual or group attacks. In the 10 to 300 meter airspace range, the short flight distance enables high-speed aircraft to approach targets and launch effective attacks within two to three seconds. The prevalence of group attacks has made this an effective close combat strategy.
The "Air Sentry" LT-FSP100 full airspace millimeter wave radar addresses these threats with 0°-360° full airspace coverage, a 10-meter blind zone, and 10-millisecond real-time response. This system effectively protects the entire 10-300 meter airspace range.
The LT-FSP100 can be equipped with cluster countermeasures including capture nets and rapid-fire firearms to counter high-speed, close-range aircraft and fiber-optic drone swarms, providing an innovative solution against cluster attacks.
Product Features:
  • Full 0°-360° airspace coverage
  • 10-meter short blind spot
  • 10 ms real-time response
  • Effective protection for 10-300 meter airspace
  • Configurable cluster countermeasures (capture nets, rapid-fire firearms) for close-range, high-speed threats and drone swarms
Technical Specifications:
Parameter Name Parameter Value
Operating Frequency Band K Band
Number of Arrays 4
Detection Range 300m (RCS:0.01m²)
Blind Range 10m
Angle Coverage Range Azimuth: 0°~360°, Pitch: 0°~90°
Tracking Function Multi-target tracking capability
Speed Measurement Range 1m/s～100m/s
Scanning Method Electronic scanning
Accuracy Distance: <1 m, Azimuth: <2°, Elevation: <2°
Target Update Rate 10ms
Tracking Targets ≥128 Batches
Weight ≤16Kg
Power Supply DC12V
Power Consumption ≤150W
Size ≤180mm*150mm*100mm
Operating Temperature Range -40℃～+55℃
