Name: Multi Beam Scanning border surveillance radar With Pitch Adjustment Device
Brand: CHENGDU RADARTONE TECHNOLOGY CO.,LTD
SKU: LT-P08
Availability: InStock

Multi Beam Scanning border surveillance radar With Pitch Adjustment Device

1set

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Radar System: Digital Beam Forming System

Operating Frequency Band: X Band

Scanning Range: Azimuth：0°-360°，Pitch：±30°

Detection Range（Pd≥90%,Pf≤10-6): UAV：7km(σ=0.01m²) ，People：12km(σ=0.7m²)

Blind Range: 240m

Resolution: Range Resolution：≤10m，Azimuth Resolution：≤3°，Pitch Resolution：≤6°

Highlight:

multi beam scanning border radar

multi beam border surveillance radar

Basic Infomation

Place of Origin: China

Brand Name: Radartone

Model Number: LT-P08

Payment & Shipping Terms

Delivery Time: 3.5 month

Payment Terms: T/T

Supply Ability: 50 set/3 momth

Gallery

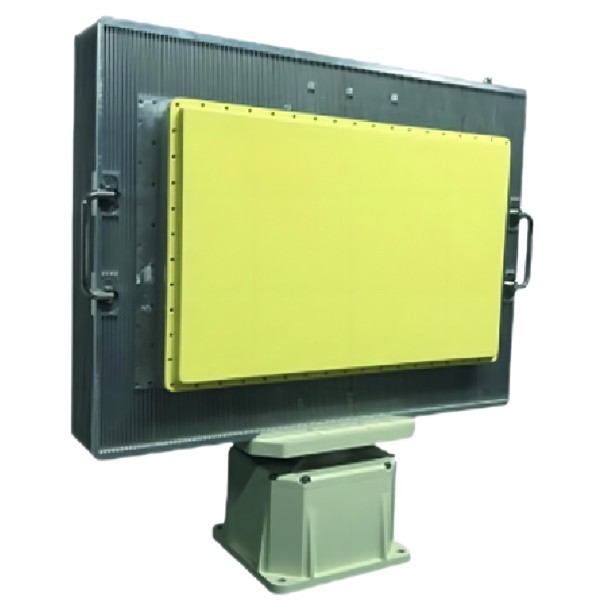

Multi Beam Scanning border surveillance radar With Pitch Adjustment Device

Product Description

LT-P08 Digital Multi-Beam Radar

Product Introduction:

The LT-P08 two-dimensional three-coordinate phased array radar is a low-altitudesurveillance and reconnaissance device operating in the X-band and capable of detecting low, small and slow targets within a range of 25 kilometers. This radar uses the Active Phased Array (AESA)system. Digital multi-beam scanning is used in the elevation dimension, while mechanical scanning is used in the azimuth dimension to achieve 360azimuth coverage.The entire machine is of modular and solidstate design to ensureequipment reliability.

Product Features:

1, Strong anti-environment clutter resistance.

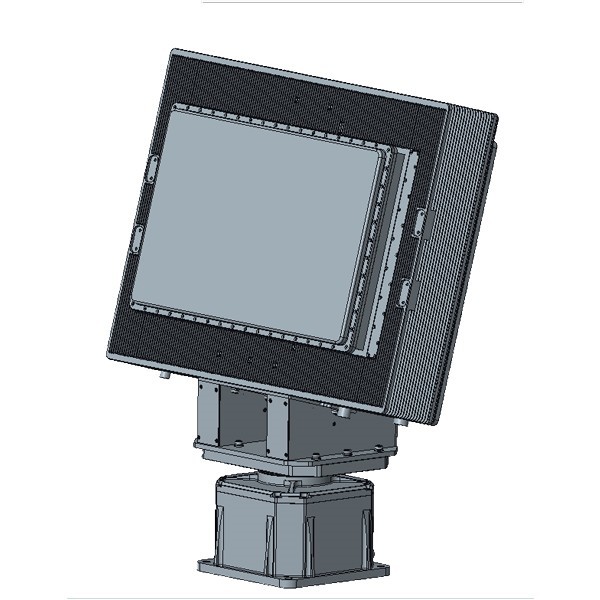

2, With pitch adjustment device, it can adjust the angle of the antenna, which is applicable to a variety of different geographical conditions.
3, Solves the technical problem of selecting multiple targets for tracking and target recognition in the background noise environment.

Parameter Name	Parameter Value
Radar System	Digital Beam Forming System
Operating Frequency Band	X Band
Scanning Range	Azimuth:0°-360°
Scanning Range	Pitch:±30°
Detection Range(Pd=0.8,Pfa=10^-6)	UAV:7km(σ=0.01m²)
Detection Range(Pd=0.8,Pfa=10^-6)	People:12km(σ=0.7m²)
Blind Range	240m
Resolution	Range Resolution≤10m
	Azimuth Resolution≤3°
	Pitch Resolution≤6°
Accuracy	Range Accuracy≤10m
	Azimuth Accuracy≤0.5°
	Pitch Accuracy≤0.6°
	Speed Accuracy≤0.5m/s
Target Radial Velocity	0.8m/s-40m/s
Target Tracking Capability	≥100 Batches
Transmit Power	≤300W
Equipment size	685mm410mm146mm(Main Unit Size)
Weight	30kg(Main Unit Weight)
