Name: X Band Four Sided Phased Array Radar Anti Clutter With AESA System
Brand: CHENGDU RADARTONE TECHNOLOGY CO.,LTD
SKU: LT-FSP360
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Radar System: Two-dimensional Active Phased Array, Four-sided Array Structure

Operating Frequency Band: X Band

Scanning Range: Azimuth：360°，Pitch：-10°-20°，Range：0.24km-26km，Electrical Scanning Azimuth：±50°，Electrical Scanning Pitch： ± 15 °

Detection Range（Pd=0.8，Pfa=10-6）: Detection Range To Vehicle：≥25km，Detection Range To People：≥11.5km，Detection Range To UAV：≥6km

Blind Range: 240m

Resolution: Range Resolution：10m，Azimuth Resolution：5°（Normal），Pitch Resolution：8°（Normal）

Highlight:

four sided phased array radar

x band phased array radar

anti clutter border security radar

Basic Infomation

Place of Origin: China

Brand Name: Radartone

Model Number: LT-FSP360

Payment & Shipping Terms

Delivery Time: 3.5 month

Payment Terms: T/T

Supply Ability: 50 set/3 momth

Gallery

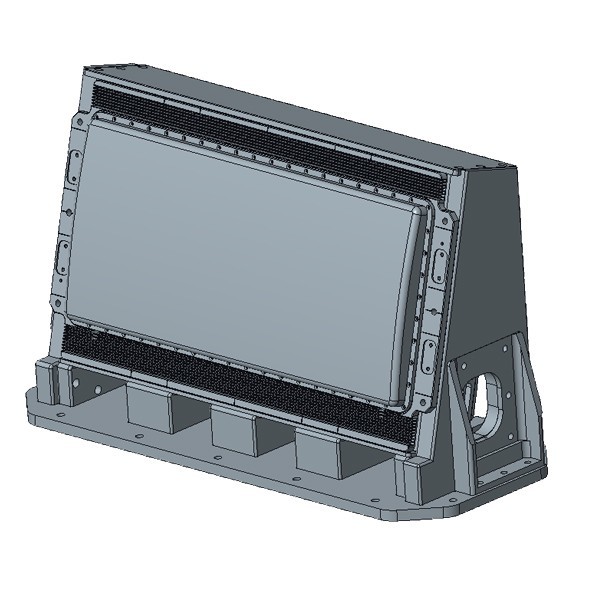

X Band Four Sided Phased Array Radar Anti Clutter With AESA System

Product Description

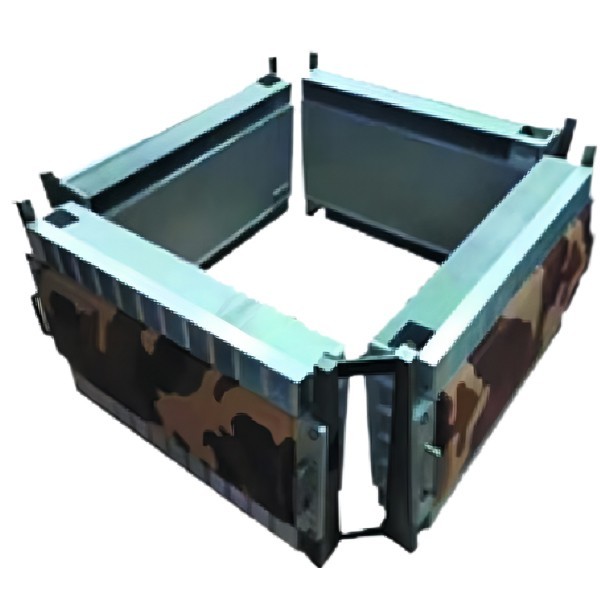

LT-FSP360 Four-Sided Phased Array Radar

Product Introduction:

The four-sided phased array radar produced by our company adopts the AESA (ActivePhased Array) system. The operating frequency band is in the X-band, with a frequency range from 9.0GHz to 10.0GHz.Multiple structural transformations can be designed according to different task reguirements, and higher data rates can be achieved by fomming multiple array types.

Product Features:

1, Information Acquisition Capability: Tracking multiple targets simultaneously, real-time detection of target speed, trajectory and spatial position.
2, Strong Anti-clutter Capability: Integration of a variety of anti-clutter algorithms.
3, Airspace Coverage Capability: Active phased array antenna realizes the coverage of the whole airspace.
4, Environmental adaptability: The devices are small in size, light in weight, and all solid-state, with high stability and reliability.

Parameter Name	Parameter Value
Radar System	Two-dimensional Active Phased Array, Four-sided Array Structure
Operating Frequency Band	X Band
Scanning Range	Azimuth:360°
	Pitch:-10°-20°
	Range:0.24km-26km
	Electrical Scanning Azimuth:±50°
	Electrical Scanning Pitch: ± 15 °
Detection Range(Pd=0.8,Pfa=10^-6)	Detection Range to Vehicle≥25km
	Detection Range to People≥11.5km
	Detection Range to UAV≥6km
Blind Range	240m
Resolution	Range Resolution:10m
	Azimuth Resolution:5°(Normal)
	Pitch Resolution:8°(Normal)
Accuracy	Range Accuracy:5m
	Azimuth Accuracy:0.4°
	Pitch Accuracy:0.6°
	Speed Accuracy:1m
Target Radial Velocity	0.8m/s-20m/s
Target Tracking Capability	Number of Dots Processed≥150 Batches
Transmit Power	224w
Equipment size	≤680mm400mm205.6mm
Weight	≤28kg (Single-sided array)
