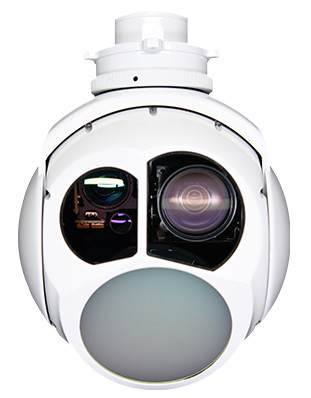

Drone Tracking Rotary Optoelectronic Pod With Two Axis Gyro Stabilized Platform

1set
MOQ
Negotiable
Price
Drone Tracking Rotary Optoelectronic Pod With Two Axis Gyro Stabilized Platform
Features Gallery Product Description Request A Quote
Features
Specifications
Visible Light Zoom Camera Wavelength: 0.4μm~0.9μm
Visible Light Zoom Camera Resolution Ratio: 1920×1080
Visible Light Zoom Camera Focal Length: 4.3mm~129mm(30X)
Visible Light Zoom Camera Continuous Zoom Horizontal Field Of View: 63.7°~2.3°
Visible Light Zoom Camera Distance: People:Detection Distance 11.1km Recognition Distance 2.7km,Vehicle:Detection Distance 23km Recognition Distance 14km
Long-wave Uncooled Infrared Imaging Operating Band: 8~14μm
Highlight:

optoelectronic rotary table for drone

,

drone tracking rotary optoelectronic pod

,

drone thermal imaging camera pod

Basic Infomation
Place of Origin: China
Brand Name: Radartone
Model Number: LT-01D
Payment & Shipping Terms
Delivery Time: 3 month
Payment Terms: T/T
Supply Ability: 50set/3month
Product Description

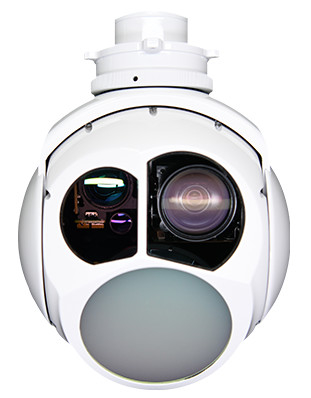

LT-01D 1KG Level Two-Axis Series Photoelectric Lens



Product Introduction:



LT-01D is a two-axis three-light reconnaissance pod equipped with a high-precision two-axis stable platform and built-in 30x continuous zoom visible light camera, long-wave uncooled infrared imaging and laser rangefinder components. It has the functions of simultaneous visible light and infrared photography and recording, as well as laser ranging. Equipped with advanced AI algorithms, it can automatically detect and identify targets such as "people", "vehicles", "ships", etc. It has multi-target tracking function, anti-occlusion and anti-link delay function, and target re-capture function. It is mainly used in surveillance fields such as imaging, detection, recognition and tracking of ground targets, meeting the needs of line inspection, accident investigation, emergency rescue, law enforcement and evidence collection, anti-terrorism and riot control.



Parameter Name Parameter Value
Visible Light Zoom Camera Wavelength:0.4μm~0.9μm
Resolution Ratio:1920×1080
Focal Length:f = 4.3mm~129mm
Horizontal Field of View Angle:63.7°~2.3°
Optical Zoom:30X
Detection Distance:People: 11.1km, Vehicle: 23km
Recognition Distance:People: 2.7km, Vehicle: 14km
Thermal Imaging Operating Band:8~14μm
Resolution Ratio:640×512
Pixel Size:12µm
Focal Length:55mm/F1.2
Viewing Angle:8°×6.4°
Laser Ranging Operating Band:1535nm
Laser Ranging Distance:4km~6km
Range Accuracy:≤1m
Ranging Frequency:1~10HZ
Servo Control Heading Range:N×360°
Pitch Range:-120°~40°
Accuracy:Angle Accuracy(1σ) ≤ 2mrad, Stability Accuracy (1σ) ≤ 100urad
Angular Velocity/Angular Acceleration:Maximum Angular Velocity ≥ 60 °/s, Maximum Angular Acceleration ≥ 150 °/s ²
System Parameter Size:≤ф135mm×195mm
Weight:≤1.25kg
Power Supply:24V
Power Waste:20W (Average), 60W (Peak)
Environmental Parameter Operatng Temperature:-40 ℃~60 ℃
