LT-AD01 2D Phased Array Radar + LT-UDA Series UAV Positioning Countermeasures Integration Equipment (Optional)
Product Introduction:

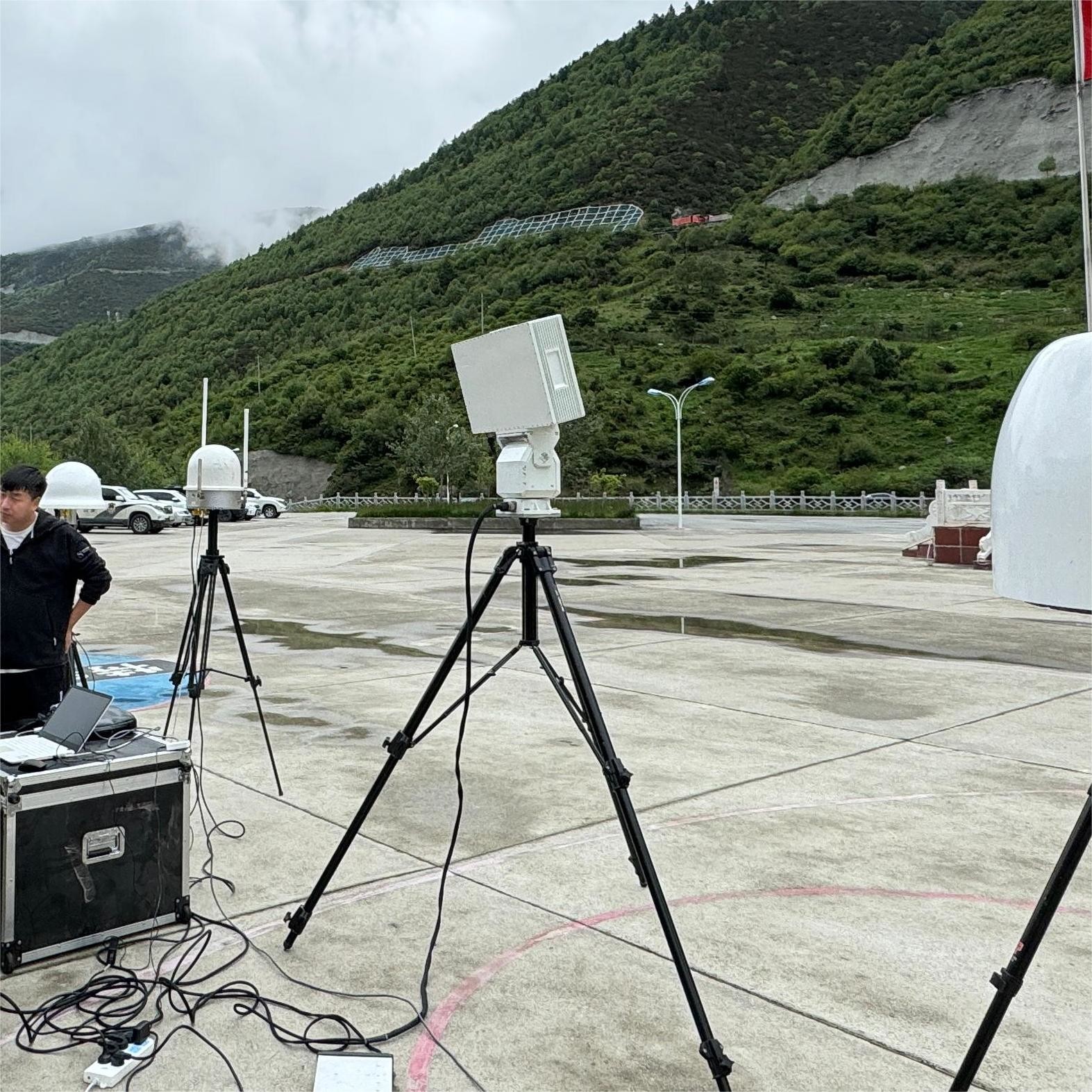

The air defense radar produced by our company has a three-coordinate all solid-statefully coherent and active two-dimensional phase scanning system. The working frequencyband is the X-band, and the whole device adopts a modular, all solid-state design to ensurethe reliability of the equipment. The equipment is used for high-speed target detectiontracking, and positioning.in addition to meeting the rigidity and strength indicators, thedesign also takes into account the layout, installation, wiring, cooling and other requirementsof a large number of electronic devices.
The UAV direction finding and positioning countermeasure equipment is an integrated system for UAV detection and warning, target recognition, direction finding, positioning, interference disposal, and control. It can be equipped with onboard components, fixed installation components, and temporary deployment components, making it flexible and suitable for multi-scenario applications.
Product Features:
1, Tracking multiple targets at the same time, real-time detection of target speed, trajectory and spatial position.
2, Integration of a variety of anti-strong clutter algorithm.
3, Active phased array antenna to achieve full airspace coverage.
4, The device is small in size, light in weight and all solid-state, with high stability and reliability.
5, Detection and positioning: Using passive and passive spectrum detection, the detection frequency is 20MHz-6GHz. Multiple array direction finding and positioning antennas are used to receive wireless signals from drones in the detection area. Using wireless protocol analysis technology, the system automatically detects and identifies the latitude and longitude coordinate information, altitude, speed, direction, and model of commonly used drones SN code, take-off point, and other information.
6, Interference disposal: Adopting high-speed digital frequency sweeping technology, through electromagnetic interference means to achieve the interference of UAV navigation, remote control, image transmission communication signals, so as to force the UAV to return to the flight or landing, and can achieve the precise interference to the designated UAV, but also can be configured with different antenna shapes according to application environments and requirements, to achieve the most economical and best performance to meet the requirements of the regional coverage.
7, Control platform: Based on SOA architecture, providing web pages with multiple access methods, such as applications, can enable access and management control of more than 20 sets of UAV detection and countermeasure devices, and support future expansion to other UAV countermeasure systems or devices, including radar, optoelectronics, deception, etc.
| Parameter Name |
Parameter Value |
| Radar System |
2D Active Phased Array |
| Operating Frequency Band |
X Band |
| Scanning Range |
Azimuth(Electrical Scanning):±15.5° |
| Pitch(Electrical Scanning):±30° |
| Azimuth(Mechanical Scanning):0°-360° |
| Pitch(Mechanical Scanning):0°-90° |
| Antenna Speed |
≤10rpm |
| Detection Range(Pd=0.8,Pfa=10-6) |
≥8 km (RCS=0.01m²) |
| ≥15.5km(RCS=0.1m²) |
| ≥25km(RCS=1m²) |
| Blind Range |
240m |
| Resolution |
Range Resolution:15m |
| Azimuth Resolution≥5° |
| Pitch Resolution≥9° |
| Accuracy |
Range Accuracy≥20m |
| Azimuth Accuracy≥0.8° |
| Pitch Accuracy≥0.8° |
| Target Radial Velocity |
0.8m/s-100m/s |
| Target Tracking Capability |
≥200 Batches |
| Transmit Power |
256W |
| Front-end Equipment Size |
≤686mm*411mm*145mm |
| Weight |
≤55kg |
| Parameter Name |
Parameter Value |
| Detection equipment |
Detection Frequency Range |
30MHz-6GHz |
| Focus Bands: 0.4, 0.9, 1.4, 2.4, 5.2, 5.8 GHz (Optional) |
| Detection Method |
Passive Radio Auto-detection, Passive Signal Reception |
| Detection Distance |
5-10km (Range Varies by Model, UAV Transmit Power >0.1W) |
| Detection Range |
Omnidirectional Detection |
| Number of Target Detections |
Simultaneous detection of over 60 UAVs |
| Accuracy |
Direction Finding Accuracy≤3°(RMS) |
| Positioning accuracy≤10 meters |
| Counter Equipment |
Counter Mode |
Radio Interference Suppression |
| Counter Target |
UAV Image Transmission, Flight Control Links, Navigation Signals |
| Counter Frequency Band |
20-6000MHz |
| 400MHz,800MHz,900MHz,1.2GHz,1.5GHz,2.4GHz,5.2GHz,5.8GHz(Optional) |
| Counter Range |
Optional Omnidirectional or Directional Configuration |
| Counter Distance |
Directional: 3-5km (Counter Range Varies by Model) |
| Omnidirectional: 1.5-2km (Counter Range Varies by Model) |
| System Integration |
Size |
Detection Equipment:450mm*400mm |
| Counter Equipment:550mm*500mm*300mm |
| Weight |
≤45kg |
| Power Consumption |
Detection Switched On:55W |
| Interference Switched On:960W |
| Ingress Protection |
IP67 |
