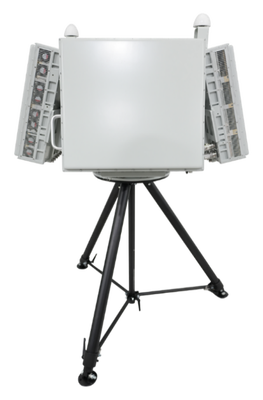

X Band Four-sided Phased Array Radar with AESA System and ≥8 km UAV Detection Range

LT-FX800 Four-sided Phased Array Radar

Product Introduction:

 The FX800 low altitude surveillance radar is an X-band two-dimensional active phased array three coordinate radar that can accurately detect and track various types of targets such as drones, aircraft, and ships. It uses intelligent beam scheduling and high-performance signal processing technology as a collaborative detection core unit to guide other sensors, and is widely used in key area protection, low altitude economy, airport bird detection, border defense, and other fields.

Product Features:

1. Strong detection capability: Drones can detect ≥ 8km, track ≥ 500 batches of targets, and provide 360 ° all-round coverage.

2. High precision refresh rate: angle measurement ≤ 0.3 °, TWS refresh rate of 2.5s, TAS mode as low as 0.25s.

3. Good environmental adaptation: working at -40 ℃~+55 ℃, IP66 protection, anti clutter, low false alarm rate.

4. Stable and easy to maintain: All solid state with no mechanical components, low power consumption, moderate weight, and low maintenance costs.
