Home /Products/Radar Simulator/LT-01 75MHz-105MHz Radar Simulator Adjustable Signal Pulse Width

LT-01 75MHz-105MHz Radar Simulator Adjustable Signal Pulse Width

1set
MOQ
Negotiable
Price
LT-01 75MHz-105MHz Radar Simulator Adjustable Signal Pulse Width
Features Gallery Product Description Request A Quote
Features
Specifications
Frequency Range: 75MHz-105MHz
Instantaneous Bandwidth: ≥30MHz
Output Power: 0dBm-20dBm
Simulate Number Of Targets: 1Target- 5 Targets
Simulate Target Delay: 120m-7000m
Simulate Target Speed: 0.5m/s-80m/s
Highlight:

75mhz-105mhz radar target simulator

,

adjustable signal pulse width radar simulator

,

radar target simulation
Basic Infomation
Place of Origin: China
Brand Name: Radartone
Model Number: LT-01
Payment & Shipping Terms
Delivery Time: 3 month
Payment Terms: T/T
Supply Ability: 50set/3month
Product Description

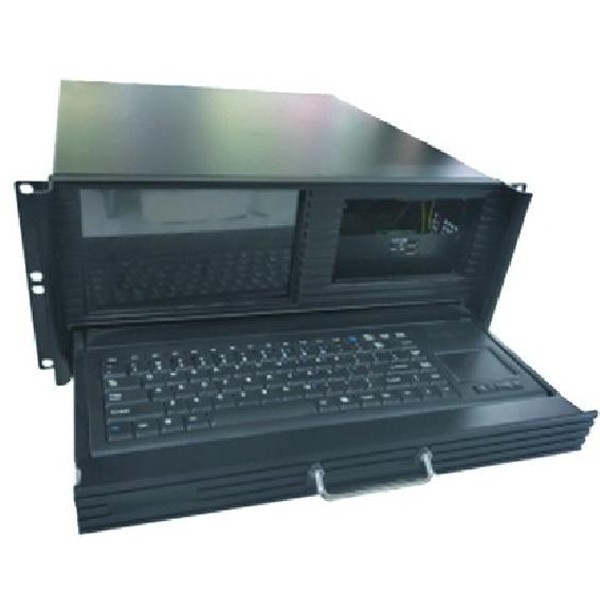

LT-01 Radar Simulator



Product Introduction:


LT-01 radar simulator, the software system sends control commands to the radar simulator via an interactive system, where the software system can set various parameters of the simulated target of the radar simulator. After the user has set the target echo parameters, the terminal software sends the relevant parameters to the baseband unit via the serial port. The baseband unit generates the appropriate target echo signal according to the settings and then transmits the signal to the radar IF processing system via cables.



Product Features:


1, Radar targets can be simulated, allowing testers to test radar performance directly in the laboratory.
2, Testing can be repeated in a short time, many times for the test, reducing the additional time spent, reducing costs.
3, Performs simulation testing, mainly including hardware module testing and signal detection.



Parameter Name Parameter Value
Frequency Range 75MHz-105MHz
Instantaneous Bandwidth ≥30MHz
Output Power 0dBm-20dBm
Simulate Number of Targets 1Target- 5 Targets
Simulate Target Delay 120m-7000m
Simulate Target Speed 0.5m/s-80m/s
Simulate Target Speed Step by Step ≤0.2m/s
Signal Pulse Width 1.6us-1000us Adjustable
Power Supply 220V/200W
Size 4U Case
Weight ≤10kg
