Variable Polarization Integrated Radar Simulator With Strong Multi Platform Adaptability

1set
MOQ
Negotiable
Price
Variable Polarization Integrated Radar Simulator With Strong Multi Platform Adaptability
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Frequency: 2GHz-4GHz
Instantaneous Operating Bandwidth: 400MHz
Transceiver Antenna Performance: Conical Spiral Antenna, Typical Gain 10dBi 、Dual Polarized Horn Antenna, Gain Range 610dBi
Reconnaissance Reception Performance: Receiver Sensitivity ≤ -60dBm
Interference Transmit Performance: Transmit Power (Single Channel) ≥ 10W Continuous Wave
Interference Simulation Performance: Noise Suppression, Coherent Suppression, Combined Interference, Polarization Control
Highlight:

integrated radar simulator

,

2GHz-4GHz radar target simulator

Basic Infomation
Place of Origin: China
Brand Name: Radartone
Model Number: Variable Polarization Integrated Simulator
Payment & Shipping Terms
Delivery Time: 3 month
Payment Terms: T/T
Supply Ability: 50set/3month
Product Description

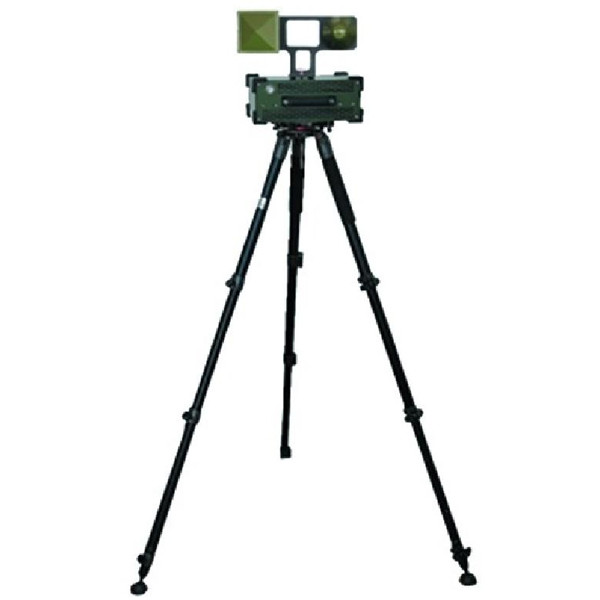

Variable Polarization Integrated Simulator



Productintroduction:


The interference and target integration simulator is based on digital radio frequencymemory (DRFM), digital jamming synthesis (DJS) and other technologies, and can simulateradar interference scenarios such as long-range support interference, team supportinterference, selfdefense interference, etc.it can flexibly generate interference signals ofnoise suppression, coherent suppression, deception and other styles, as well ashigh-precision radar target echo signals. The signal parameters are flexible and controllablewhich can create a realistic interference and target environment for air defense earywarning radars within the working frequency band. it is suitable for radar interference andanti-interference performance testing, tactical technology training and other applicationscenarios, and meets the needs of users such as troops, bases, firing ranges, and researchinstitutes.


Product Features:



1, Based on mainstream technology realization, strong signal simulation ability, good effect of actual installation confrontation test.

2, Portable design, small equipment size, easy transportation and use.

3, Strong multi-platform adaptability, meet the needs of ground, vehicle, UAV and othermultiple use.



Parameter Name Parameter Value
Operating Frequency 2GHz-4GHz
Instantaneous Operating Bandwidth 400MHz
Transceiver Antenna Performance Conical Spiral Antenna, Typical Gain 10dBi
Dual Polarized Horn Antenna, Gain Range 610dBi
Reconnaissance Reception Performance Receiver Sensitivity ≤ -60dBm
Interference Transmit Performance Transmit Power (Single Channel) ≥ 10W Continuous Wave
Interference Simulation Performance Noise Suppression, Coherent Suppression, Combined Interference, Polarization Control
Target Simulation Performance Quantity: 1~8 batches, can be Planned
RCS: Range 0.01m2-100m2
Distance: Range 10km-500km
Speed: range ± 1000m/s,Accuracy≤1m/s
Environmental Adaptability Storage Temperature:-45℃-+65℃
Operating Temperature:-30℃-+50℃
Power Supply Method AC220V
Weight ≤12kg(Includes Main Unit and Antenna)
