96 Backpack Individual Soldier Self Organizing Network Radio Station Light Weight

1set
MOQ
Negotiable
Price
96 Backpack Individual Soldier Self Organizing Network Radio Station Light Weight
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Frequency: 1428MHz-1448MHz
Carrier Bandwidth: 5MHz/10MHz/20MHz, Flexible And Configurable
Transmission System: COFDM
Modulation Mode: BPSK/QPSK/16QAM/64QAM(Adaptive)
Transmission Capacity: Peak Rate 90Mbps@20MHz
Transmit Power: 2W
Highlight:

self organizing network radio station

,

backpack self organizing network

,

backpack self organizing network radio

Basic Infomation
Place of Origin: China
Brand Name: Radartone
Model Number: 96 Backpack Individual Soldier Self-organizing Network Radio Station
Payment & Shipping Terms
Delivery Time: 1.5 month
Payment Terms: T/T
Supply Ability: 50set/1month
Product Description

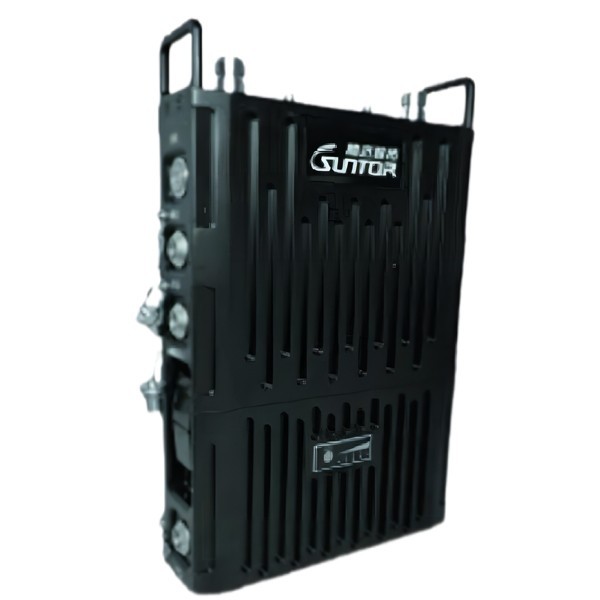

96 Backpack Individual Soldier Self-organizing Network Radio Station



Product Introduction:


The backpack self-organizing network radio for is small in size, light in weight, and equipped with high-capacity detachable batteries, making it easy for individual soldiers to carry on their backs. It also has Beidou positioning function and supports Wi-Fi coverage, which can be used in conjunction with intelligent terminals with Wi-Fi functions for various communications.


Product Features:


1, Ad-hoc Networking: nodes have equal status and can serve as terminal nodes, relay nodes, etc.
2, Security and confidentiality: layer-by-layer encryption through operating frequency, carrier bandwidth, scrambling code, etc.
3, Anti-interference: Adopts COFDM, MIMO, ARQ and other technologies to improve data bandwidth.
4, Flexible multi-node networking: based on indicators such as channel quality, rate and error rate.
5, Full IP networking and interoperability: supports data transfer and real-time interaction between multiple systems.



Parameter Name Parameter Value
Operating Frequency 1428MHz-1448MHz
Carrier Bandwidth 5MHz/10MHz/20MHz, Flexible and Configurable
Transmission System COFDM
Modulation Mode BPSK/QPSK/16QAM/64QAM(Adaptive)
Transmission Capacity Peak Rate 90Mbps@20MHz
Transmit Power 2W
Receiver Sensitivity -92dBm@5MHz
Video Input

Supports IP Network Video Input, WIFI Video Access

(HDMI Video Input to be Customized)

Network Function Network Capability ≥ 52 Nodes
Network Hops > 10 Hops
Network Access Time 5 Seconds After System Hot Start to Connect to the Network
Network Topology Ad-hoc networks, Star Networks, Chain Networks, Mesh Networks, etc.
Encryption Method AES128/AES256
Power Supply Method Equipped with DC25.2V Detachable Lithium Battery
Power Consumption Peak Power Consumption ≤ 30W; Typical Power Consumption ≤ 20W
Equipment Interface
Antenna Interface N-K×2
Positioning interface SMA-K
WIFI Interface SMA-K
Ethernet Interface Aviation Plug Connector, Supports 100Mbps Ethernet Port
Audio Interface Aviation Plug Connector, Supports Handheld Microphones or Headphones.
Physical Indicators
Size ≤275mm*198mm*52mm(Battery Included)
Weight ≤2.9kg(Battery Included)
Ingress Protection IP66
Operating Temperature -30℃-+65℃
