Broadband Wireless Ad Hoc Network System

Broadband Wireless Ad Hoc Network System

Product Introduction:

1, Strong resistance to environmental clutter.Fast and easy networking: networking is done immediately upon startup, without any operation, and can build high-speed mobile, fast reconstruction, and real-time deployment mobile self-organizing network links.

2, Supports multi-hop transmission: Effective video transmission can reach up to 10 hops.

3, Self-positioning capability and situational coordination, access and transmission of voice, video, images, files, data, etc.

4, Strong diffraction capability: can operate in non-line-of-sight environments, adapt to various terrain environments such as forests, slopes, tunnels, cities, and complex electromagnetic environments.

5, Terminal as relay: It can achieve mixed networking of multiple communication links, and any node device in the network can be both a regular communication device and a relay device with forwarding function.

6, Diversified interfaces: Multiple signal interfaces such as WLAN, 3G/4G, WIFI, audio and video can be customized and reserved, and various information sources such as tablets, mobile phones, and cameras can be installed externally.

7, 4G public network and satellite communication: can access 4G public network transparent transmission and satellite transparent transmission devices.

8, Standard TCP/IP access: Supports standard TCP/IP communication protocols.

9, HWIFI access: Supports WIFI communications and terminal access applications.

Product Composition:

1, LT-AH01/02 vehicle mounted self-organizing network communication equipment is mainly used for various types of information access and anti-interference self-organizing network communication in vehicles. It has functions such as anti-interference self-organizing network communication, multi service broadband transparent transmission, satellite positioning, etc.

2, LT-AH03 handheld broadband self-organizing network communication device, equipped with frontline team members, mainly used for real-time acquisition and sharing of video, voice, and location. Equipped with anti-interference self-organizing network communication, multi-service broadband transparent transmission, satellite positioning and other functions.

3, LT-AH04 backpack self-organizing network communication device, mainly used for real-time acquisition and sharing of audio and video, messages, pictures, positions, situations, data, etc. of team members, teams, and squads. Equipped with anti-interference self-organizing network communication, multi-service broadband transparent transmission, satellite positioning and other functions.

4, LT-AH05 airborne broadband self-organizing network communication equipment, mainly used for real-time sharing of airborne video and voice and relay of self-organizing network systems. It has functions such as video access, anti-interference self-organizing network communication, multi-service broadband transparent transmission, satellite positioning, etc.

5, LT-AH06 high-power self-organizing network communication equipment is mainly used for remote enhanced transmission and real-time acquisition and sharing of audio and video, messages, location, situation, data, etc. for teams, squads, vehicles, chain networking, temporary command posts, etc. Equipped with anti-interference self-organizing network communication, multi-service broadband transparent transmission, satellite positioning and other functions.

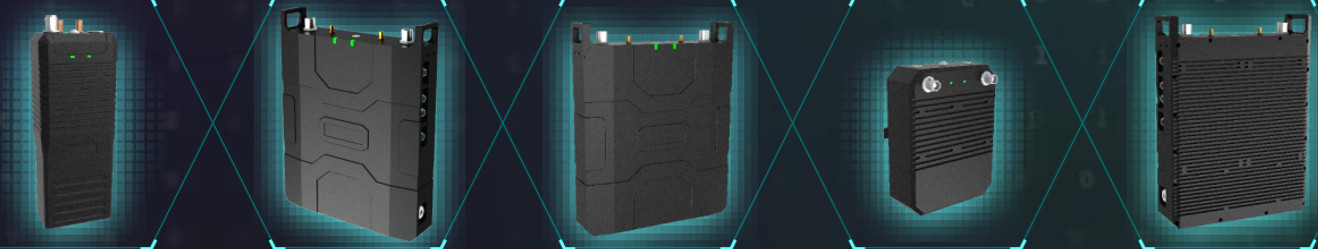

	LT-AH01/02	LT-AH03	LT-AH04	LT-AH05	LT-AH06
Parameter Name	Parameter Value
Operation Method	Vehicle Mounted, Fixed Deployment	Handheld / Wearable Integration	Backpack Style	Airborne Type	Vehicle Mounted, Fixed Deployment, etc
External Interface	Standard Interfaces such as Ethernet, WIFI, Serial Port, etc	Internet port, WIFI, Voice port	Internet port, WIFI, Serial Port, Voice port, etc	Standard Interfaces such as Ethernet and Serial Ports	Standard interfaces such as Ethernet, WIFI, serial port, etc
Communication Distance	≥30km(Visibility Condition)	≥15km(Visibility Condition)	≥30km(Visibility Condition)		≥50km(Visibility Condition)
Transfer Rate	Maximum not less than 50Mbps
Communication Standard	TCP/IP Standard Protocol, Serial Port Customisation Protocol	TCP/IP Standard Protocol	TCP/IP Standard Protocol, Serial Port Customisation Protocol
Networking Mode	Support for Ad Hoc Network
Networking Capacity	≥ 32 points, and can be extended to multiple frequencies
Relay Capability	≥10 Hops
Information Type		Real Time Video and Audio, Data, and Positioning
Information processing capability		• Support for voice conferencing, intercom and other functions; support for standard TCP, UDP and other data. • Ability to visualize network topology in real time and apply situational awareness.	• Real-time access, customised processing and transmission of video and audio, sensors, etc. • Supports voice conferencing, intercom and other functions. • Support for standard TCP, UDP and other data. • Ability to visualize network topology in real time and apply situational awareness.
Operation Time		≥4 hours	≥8 hours	≥2 hours
Positioning Ability	Capable of Multi-mode Satellite Positioning				Capable of Satellite Positioning
Power Supply	Vehicle Power Supply				External Power Supply
Size	≤300mmx 200mmx 50mm	≤200mmx 80mmx 45mm	≤300mmx 200mmx 50mm	≤160mmx 120mmx 50mm	≤320mmx 250mmx 60mm
Weight	≤3000g	≤1000g	≤3000g	≤1100g	≤4500g
Environmental Adaptability	National Military Standard (NMS)
