Eight Rotor 25kg Level Multi Purpose Drone For Carrying Cargo Or Investigation Field

1set
MOQ
Negotiable
Price
Eight Rotor 25kg Level Multi Purpose Drone For Carrying Cargo Or Investigation Field
Features Gallery Product Description Request A Quote
Features
Specifications
Number Of Rotors: 6
Flight Wheelbase: 1600mm
Total Weight: 11kg (Without Battery)
Maximum Take-off Weight: 35kg (with 4 Batteries)
Payload: ≥15kg
Maximum Level Flight Speed: 10m/s
Highlight:

25kg level multi purpose drone

,

multi purpose drone for carrying cargo

,

eight rotor multi purpose drone

Basic Infomation
Place of Origin: China
Brand Name: Radartone
Model Number: LT-M8FD + LT-01GN
Payment & Shipping Terms
Delivery Time: 3 month
Payment Terms: T/T
Supply Ability: 50set/3month
Product Description

LT-M8FD Customized UAV (25kg Level) + LT-01GN AI Three-Axis Series Photoelectric Lens (Optional)



Product Introduction:

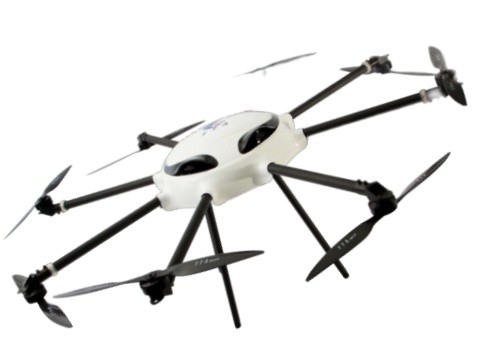

The LT-M8FD is an eight-rotor networked UAV developed for customized needs. It supports direct networking of applications through 4G/5G or ad-hoc networks with cloud control platforms, and meets the application needs of more customers to integrate and mount various dedicated payloads by reserving standard and rich interfaces. With its superior performance, it has been widely used in fields such as investigation, delivery, search and rescue, command, inspection, and logistics.

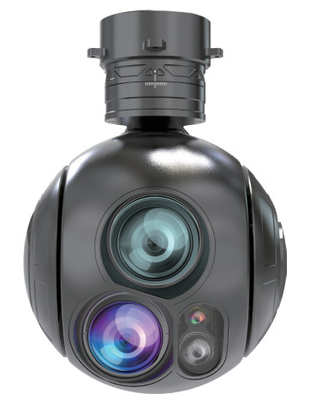

LT-01GN is a three-axis gyroscope stabilized three-light gimbal with a compact, lightweight and integrated industrial design. It is equipped with a 30x continuous optical zoom visible light camera, long wave uncooled infrared imaging component, laser rangefinder, and built-in anti-delay module, AI target recognition, and multi-target tracking module. It is mainly used in monitoring fields such as imaging, detection, tracking and identification of ground targets, meeting the needs of line inspection, accident investigation, emergency rescue, law enforcement and evidence collection, anti-terrorism and riot control.



Parameter Name Parameter Value
Number of Rotors 8
Flight Wheelbase 2004mm
Total Weight 14kg (Without Battery)
Maximum Take-off Weight 50-54kg (with 6 Batteries)
Payload ≥25kg
Maximum Cruising Speed 10m/s
Maximum Lifting Speed 5m/s
Maximum Level Flight Speed 10m/s
Hovering Accuracy

Vertical Direction ±0.5m, Horizontal Direction±1.5m

(GPS Compatible with Beidou)

Flight Time 30-50min
Flight Distance ≥15km
Effective Control Radius Ground Station 10km
Maximum Flight Altitude 3000m
Maximum Wind Resistance 7 Level
Multiple Control Modes

Manual Stabilization, Automatic Takeoff/Landing,

Attitude Stabilization/GPS Attitude Stabilization

Security Control

One Click Return, Out of Control Return,

Low Battery Alarm, Data Black Box

Whole Machine Hovering (Unloaded)

Rated power: 4000W, peak power 5500W, if loaded with heavy objects,

power must be calculated according to weight

Operating Temperature -10-40℃
Unfolded Size 280cm*280cm*95cm
Folded Size 65.5cm*65.5cm*95cm



































































Parameter Name Parameter Value
Visible Light Zoom Camera Wavelength:0.4μm~0.9μm
Resolution Ratio:1920×1080
Focal Length:f = 4.3mm~129mm
Horizontal Field of View Angle:63.7°~2.3°
Optical Zoom:30X
Detection Distance:People: 6km, Vehicle: 15km
Recognition Distance:People: 2km, Vehicle: 8km
Thermal Imaging Operating Band:8~14μm
Resolution Ratio:640×512
Pixel Size:12µm
Focal Length:35mm/F1.0
Viewing Angle:12.4°×9.9°
Detection Distance:People: 1.2km, Vehicle: 5km
Recognition Distance:People: 0.4km, Vehicle: 1.2km
Laser Ranging Operating Band:1535nm
Laser Ranging Distance:20m~3000m
Range Accuracy:±1m
Ranging Frequency:1HZ
Servo Control Heading Range:N×360°
Pitch Range:-120°~40°
Rolling Range:-45°~45°
System Parameter Size:≤ф130mm×181mm
Weight:≤1.2kg
Power Supply:12V
Power Waste:20W (Average), 50W (Peak)
Communication Interface:Serial Port, 100Mbps Network, SBUS
Video Interface:100Mbps Network
Single Target Tracking Target Type:General Target
Tracking Speed:≥32 Pixels/Frame
Update Frame Rate:≥50FPS
Multi Target Tracking Target Type:People, Vehicles,Ships, Airplanes
Recall Rate:≥90%
Accuracy Rate:≥80%
Minimum Target Size:32×32 @1080P
Tracking Target Quantity:≥20
Tracking Jump Rate:≤15%
Update Frame Rate:≥20FPS
Video & Strorage Photo Format:JPEG
Video Format:MP4
Encoding Format:H.264, H.265
Video Protocols:TS, RTSP, RTMP, UDP, etc.
Storage:128GB
Environmental Parameter Operatng Temperature:-20 ℃~60 ℃
Storage Temperature:-40 ℃~70 ℃
