8 Rotors Heavy Duty Networked UAV 30kg Level With AI Three Axis Series Photoelectric Lens

1set
MOQ
Negotiable
Price
8 Rotors Heavy Duty Networked UAV 30kg Level With AI Three Axis Series Photoelectric Lens
Features Gallery Product Description Request A Quote
Features
Specifications
Number Of Rotors: 8
Flight Wheelbase: 2004mm
Total Weight: 14kg (Without Battery)
Maximum Take-off Weight: 50-54kg (with 6 Batteries)
Payload: ≥25kg
Maximum Cruising Speed: 10m/s
Highlight:

30kg level multi purpose drone

,

networked uav with photoelectric lens

,

8 rotors multi purpose uav

Basic Infomation
Place of Origin: China
Brand Name: Radartone
Model Number: LT-M50 + LT-01D
Payment & Shipping Terms
Delivery Time: 3 month
Payment Terms: T/T
Supply Ability: 50set/3month
Product Description

LT-M50 Heavy Duty UAV (30kg Level) + LT-01D AI Three-Axis Series Photoelectric Lens (Optional)

Product Introduction:

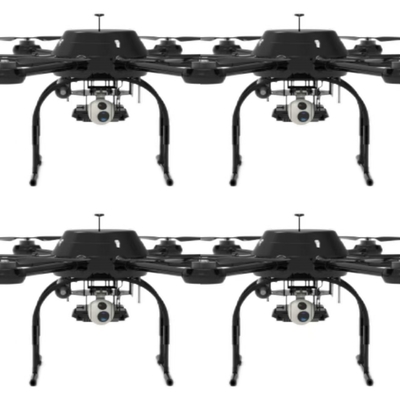

The LT-M50 is an eight-rotor multi-purpose networked UAV. It supports the direct networking of applications through 4G/5G or ad-hoc networks with cloud control platforms, and meets the application needs of more customers and scenarios through greater load capacity design. With its superior performance, it has been widely used in logistics, delivery, command, rescue and other fields.

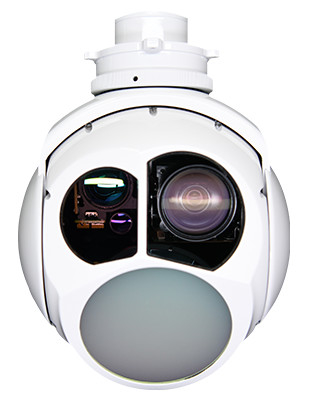

LT-01D is a two-axis three-light reconnaissance pod equipped with a high-precision two-axis stable platform and built-in 30x continuous zoom visible light camera, long-wave uncooled infrared imaging and laser rangefinder components. It has the functions of simultaneous visible light and infrared photography and recording, as well as laser ranging. Equipped with advanced AI algorithms, it can automatically detect and identify targets such as "people", "vehicles", "ships", etc. It has multi-target tracking function, anti-occlusion and anti-link delay function, and target re-capture function. It is mainly used in surveillance fields such as imaging, detection, recognition and tracking of ground targets, meeting the needs of line inspection, accident investigation, emergency rescue, law enforcement and evidence collection, anti-terrorism and riot control.



Parameter Name Parameter Value
Number of Rotors 8
Flight Wheelbase 2004mm
Total Weight 14kg (Without Battery)
Maximum Take-off Weight 50-54kg (with 6 Batteries)
Payload ≥25kg
Maximum Cruising Speed 10m/s
Maximum Lifting Speed 5m/s
Maximum Level Flight Speed 10m/s
Hovering Accuracy

Vertical Direction ±0.5m, Horizontal Direction ±1.5m
(GPS Compatible with Beidou)

Flight Time 30-50min
Flight Distance ≥15km
Effective Control Radius Ground Station 10km
Maximum Flight Altitude 3000m
Maximum Wind Resistance 7 Level
Multiple Control Modes

Manual Stabilization, Automatic Takeoff/Landing,
Attitude Stabilization/GPS Attitude Stabilization

Security Control

One Click Return, Out of Control Return,
Low Battery Alarm, Data Black Box

Whole Machine Hovering (Unloaded)

Rated power: 4000W, peak power 5500W, if loaded with heavy objects,
power must be calculated according to weight

Operating Temperature -10-40℃
Unfolded Size 280cm*280cm*95cm
Folded Size 65.5cm*65.5cm*95cm

Parameter Name Parameter Value
Visible Light Zoom Camera Wavelength:0.4μm~0.9μm
Resolution Ratio:1920×1080
Focal Length:f = 4.3mm~129mm
Horizontal Field of View Angle:63.7°~2.3°
Optical Zoom:30X
Detection Distance:People: 11.1km, Vehicle: 23km
Recognition Distance:People: 2.7km, Vehicle: 14km
Thermal Imaging Operating Band:8~14μm
Resolution Ratio:640×512
Pixel Size:12µm
Focal Length:55mm/F1.2
Viewing Angle:8°×6.4°
Laser Ranging Operating Band:1535nm
Laser Ranging Distance:4km~6km
Range Accuracy:≤1m
Ranging Frequency:1~10HZ
Servo Control Heading Range:N×360°
Pitch Range:-120°~40°
Accuracy:Angle Accuracy(1σ) ≤ 2mrad, Stability Accuracy (1σ) ≤ 100urad
Angular Velocity/Angular Acceleration:Maximum Angular Velocity ≥ 60 °/s, Maximum Angular Acceleration ≥ 150 °/s ²
System Parameter Size:≤ф135mm×195mm
Weight:≤1.25kg
Power Supply:24V
Power Waste:20W (Average), 60W (Peak)
Environmental Parameter Operatng Temperature:-40 ℃~60 ℃
