LT-FSP360 Four-Sided Phased Array Radar + LT-RFS30+ UAV Detection and Positioning Equipment (Optional)

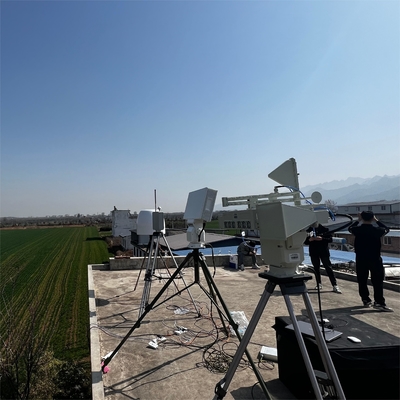

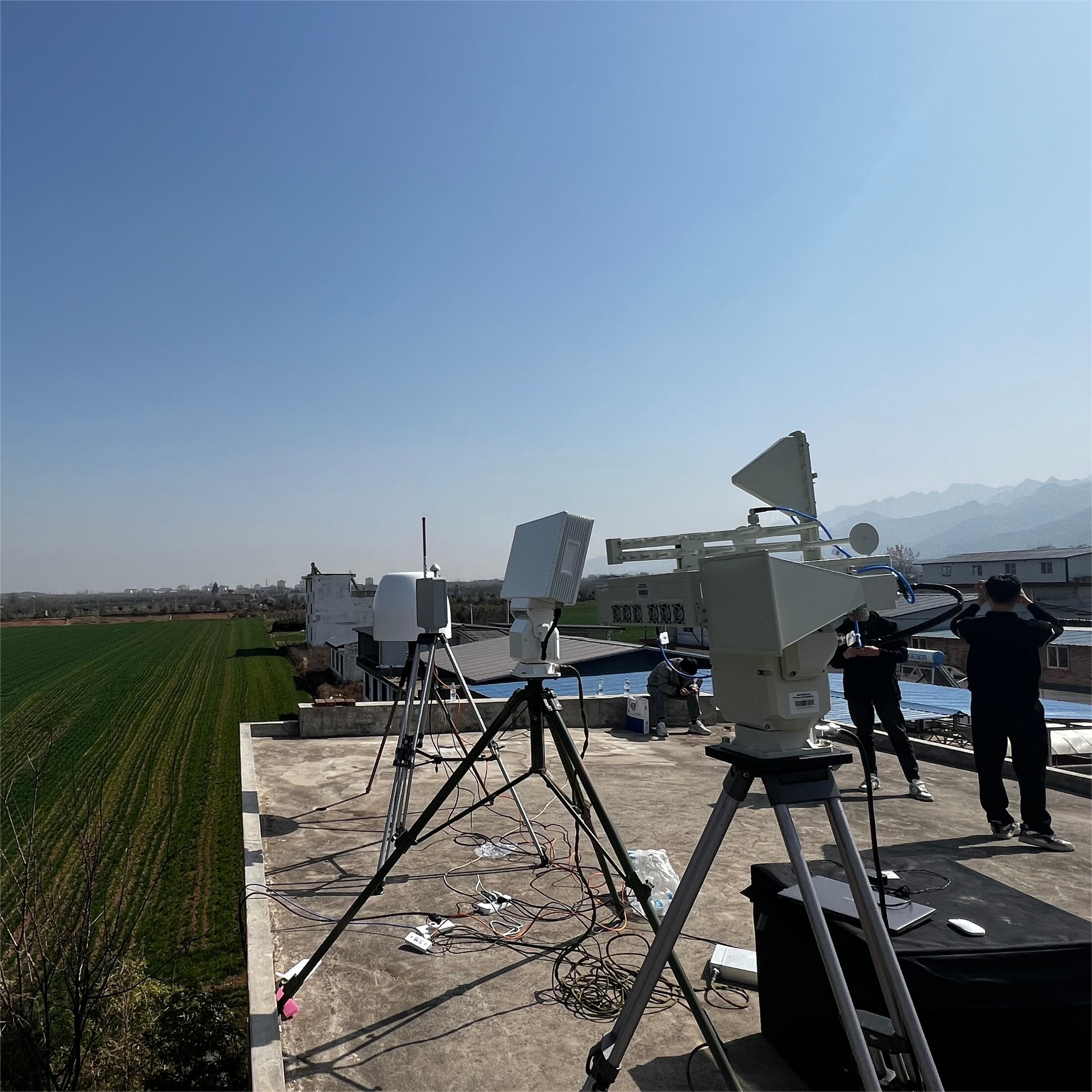

Product Introduction:
The four-sided phased array radar produced by our company adopts the AESA (ActivePhased Array) system. The operating frequency band is in the X-band, with a frequency range from 9.0GHz to 10.0GHz.Multiple structural transformations can be designed according to different task reguirements, and higher data rates can be achieved by fomming multiple array types.
The UAV identification and positioning equipment is mainly used to detect and identify all kinds of UAV remote control and image transmission radio signals, and to measure direction and position. It achieves the tracking and marking of UAV trajectories, facilitates the operator to monitor the UAV situation in the protected area, and at the same time has the capability of reconnaissance and early warning, precise identification, black and white lists, the identification between friend or foe in the UAV precise control technology program, and early warning and alarm.
Product Features:
1, Information Acquisition Capability: Tracking multiple targets simultaneously, real-time detection of target speed, trajectory and spatial position.
2, Strong Anti-clutter Capability: Integration of a variety of anti-clutter algorithms.
3, Airspace Coverage Capability: Active phased array antenna realizes the coverage of the whole airspace.
4, Environmental adaptability: The devices are small in size, light in weight, and all solid-state, with high stability and reliability.
5, The system found that the UAV had an effective range of both near and far, with a monitoring distance of 5,000 meters.
6, Direction finding accuracy≤3°.
7, With UAV and operator tracking capabilities to suit a variety of application environments.
8, Supports both stand-alone and networked (intersection positioning) modes of operation, providing excellent scalability.
9, Supports black and white list recognition of drones, distinguishing between friend and foe for precision strikes.
| Parameter Name |
Parameter Value |
| Radar System |
Two-dimensional Active Phased Array, Four-sided Array Structure |
| Operating Frequency Band |
X Band |
| Scanning Range |
Azimuth:360° |
| Pitch:-10°-20° |
| Range:0.24km-26km |
| Electrical Scanning Azimuth:±50° |
| Electrical Scanning Pitch: ± 15 ° |
| Detection Range(Pd=0.8,Pfa=10-6) |
Detection Range to Vehicle≥25km |
| Detection Range to People≥11.5km |
| Detection Range to UAV≥6km |
| Blind Range |
240m |
| Resolution |
Range Resolution:10m |
| Azimuth Resolution:5°(Normal) |
| Pitch Resolution:8°(Normal) |
| Accuracy |
Range Accuracy:5m |
| Azimuth Accuracy:0.4° |
| Pitch Accuracy:0.6° |
| Speed Accuracy:1m |
| Target Radial Velocity |
0.8m/s-20m/s |
| Target Tracking Capability |
Number of Dots Processed≥150 Batches |
| Transmit Power |
224w |
| Equipment size |
≤680mm*400mm*205.6mm |
| Weight |
≤28kg (Single-sided array) |
| Parameter Name |
Parameter Value |
| Detection Frequency Range |
30MHz-6000MHz |
| Focus Bands: 0.4,0.9,1.4,2.4,5.2,5.8GHz |
| Detection Method |
Passive Radio Auto-detection, Passive Signal Reception |
| Detection Distance |
3km(Range Varies by Model, UAV Transmit Power >0.1W) |
| Detection Range |
Omnidirectional Detection |
| Number of Target Detections |
Simultaneous detection of over 20 UAVs |
| Simultaneous positioning of over 6 UAVs |
| Accuracy |
Direction Finding Accuracy≤1.5° |
| Positioning Accuracy≤10m |
| Detection Success Rate |
≥98% |
| Detection Response Time |
≤3s |
| Size |
215mm*280mm |
| Weight |
≤3kg |
| Ingress Protection |
IP67 |
| Usage |
4 or more devices are networked for use |
