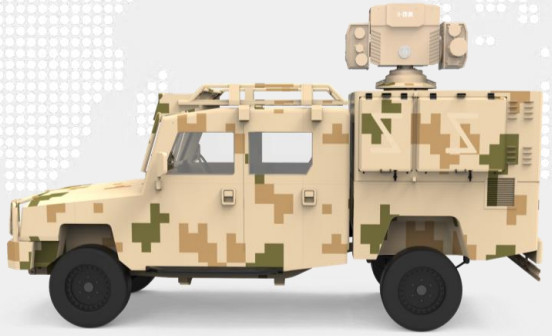

Laser Countermeasure Unmanned Aerial Vehicle System (LT-II)
Product Introduction:
Laser countermeasure unmanned aerial vehicle systems are divided into two forms: fixed (LT-IB) and mobile (LT-II). The high-energy laser beam emitted by it can easily penetrate common shelters such as steel plates and cement walls. In terms of target locking, the "LT- IB" system integrates advanced white light photodetectors and thermal imaging photodetectors, which can detect and track targets 24/7 and in all directions. Even in complex environments, it can accurately lock high-speed moving drones and ensure the effectiveness of attacks.
Compared with the fixed deployment of "LT-IB", the "LT-II" system is more flexible and maneuverable, can be quickly deployed according to the battlefield situation, and is more suitable for carrying out field air defense tasks.
Product Features (LT- II):
1, Search and attack drone targets while the vehicle is in motion;
2, Capable of independently detecting, identifying, capturing, tracking, and attacking drones without the need for radar guidance;
3, Capable of detecting and identifying targets in complex environments;
4, Capable of 360 degree search and attack of drones;
5, Mobile high-energy laser defense system;
6, Used to prevent the intrusion, attack, reconnaissance, and filming of "low, small, slow" drones;
7, Suitable for VIP security, government offices, airports, and large-scale events that require low altitude security.
Parameter Name | Parameter Value |
Interception (Destruction) Distance | 1.0km (@ Typical Target, 10km Visibility, Rcs=0.01m2) |
Detection Distance | 2.0km |
Tracking and Aiming Accuracy | 20μrad |
Laser Light Source Power | 3.0kW |
Pitching Disposal Airspace | -5°~ +70° |
Direction Disposal Airspace | 0°~ +360° |
Power Waste | ≥ 14kW |
Storage Environment Temperature | -25°C~ +50°C |
Operating Environment Temperature | -20°C~ +45°C |
Duration of Single Light Output | ≤ 120s |
System Beam Quality β: | ≥ 1.6 |
Launch Caliber | Φ 120mm |
