Laser Countermeasure Unmanned Aerial Vehicle System (LT-X1)

1set
MOQ
Negotiable
Price
Laser Countermeasure Unmanned Aerial Vehicle System (LT-X1)
Features Gallery Product Description Request A Quote
Features
Specifications
Photoelectric Detection Distance: ≥ 2km (@ 10km Visibility, @ 0.04m2 Target)
Tracking Distance: ≥ 2km (@ 10km Visibility, @ 0.04m2 Target)
Tracking And Aiming Accuracy: ≤ 20 μ Rad (@ 10km Visibility, @ 0.04m2 Target)
Minimum Tracking And Aiming Distance: 200m
Destruction Distance: ≥ 1.0km (@ 10km Visibility, @ 0.04m2 Target)
Highlight:

Unmanned Aerial Vehicle System

,

Unmanned Aerial Vehicle Laser Countermeasure

Basic Infomation
Place of Origin: China
Brand Name: Radartone
Model Number: LT-X1
Payment & Shipping Terms
Delivery Time: 3 month
Payment Terms: T/T
Supply Ability: 50set/3month
Product Description

Laser Countermeasure Unmanned Aerial Vehicle System (LT-X1)





Product Introduction:



The LT-X1 laser countermeasure system is a compact low-altitude security device designed for low-altitude countermeasures against unmanned aerial vehicles and specific "low slow small" targets, integrating search, detection, tracking and destruction. LT-X1 has a modular design that can be rapidly deployed or permanently stationed. Through self search or radar guidance mode, it can accurately intercept various small rotorcraft represented by DJI Elf 4, with the characteristics of fast, accurate, silent and no collateral damage. It is an effective means of preventing "low, slow, small" targets from flying black and causing accidents. The equipment is fixed on local highlands, easy to disassemble and assemble, stable and reliable, and can be widely used for low-altitude security in major activity areas and various important locations in densely populated urban areas. It is mainly used for low-level defense needs such as nuclear facilities, airports, oil depots, nuclear power plants, important military targets, VIP escort security and major events.



Product Features:



1,Capable of target detection and recognition;

2,Capable of capturing, tracking, and aiming targets;

3,Capable of actively intercepting targets;

4,Capable of actively illuminating weak targets;

5,Data recording and storage function;

6,Quick withdrawal and deployment function.

7,Special requirement: As the LT-X1 is a fixed security system, it must be installed upright and fixed to a horizontal base on localized high ground and installation on vibrating, swaying or tilting platforms will affect the normal use of the product.

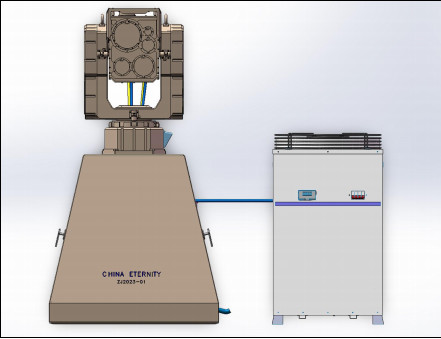

 Laser Countermeasure Unmanned Aerial Vehicle System (LT-X1) 0



Parameter Name Parameter Value
Photoelectric Detection Distance ≥ 2km (@ 10km Visibility, @ 0.04m2 Target)
Tracking Distance ≥ 2km (@ 10km Visibility, @ 0.04 m2 Target)
Tracking and Aiming Accuracy ≤ 20 μ rad (@ 10km Visibility, @ 0.04m2 Target)
Minimum Tracking and Aiming Distance 200m
Destruction Distance ≥ 1.0km (@ 10km Visibility, @ 0.04m2 Target)
Destruction Time 1-15s When the target distance is 0.8-1km (@ 10km Visibility, @ 0.04m2 Target, @ Speed ≤ 30m/s)
Distance Measurement Capability ≥ 2km (Visibility 10km, Target 0.04m2)
Pitch Disposition Airspace -20° to +60°
Azimuth Disposal Airspace ±170°
Main Laser Power ≥ 3kW
Maximum Duration of a Single Laser Output ≥ 120s
Total System Power Consumption ≤ 14kW
Total System Weight ≤ 450kg
Operating Environment Temperature -20°C~55°C
Operating Relative Humidity ≤ 70%RH@25°C
Storage Environment Temperature -20°C~60°C
Storage Relative Humidity ≤ 95%RH@25°C
Ingress Protection IP65
