Name: Phased Array Three Coordinate Border Radar System Ku Band Solid State Design
Brand: CHENGDU RADARTONE TECHNOLOGY CO.,LTD
SKU: LT-Ku07
Availability: InStock

Phased Array Three Coordinate Border Radar System Ku Band Solid State Design

1set

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Radar System: Pitch 1D Active Phased Array+ Azimuthal MechanicaScanning

Operating Frequency Band: Ku Band

Scanning Range: Azimuth: 0°-360°,Pitch: 0°-45°

Antenna Speed: 60°/s

Detection Range(Pd=0.8，Pfa=10-6): 5km

Blind Range: ≤200m

Highlight:

three coordinate border radar

solid state design border radar

three coordinate phased array radar

Basic Infomation

Place of Origin: China

Brand Name: Radartone

Model Number: LT-Ku07

Payment & Shipping Terms

Delivery Time: 3.5 month

Payment Terms: T/T

Supply Ability: 50 set/3 momth

Gallery

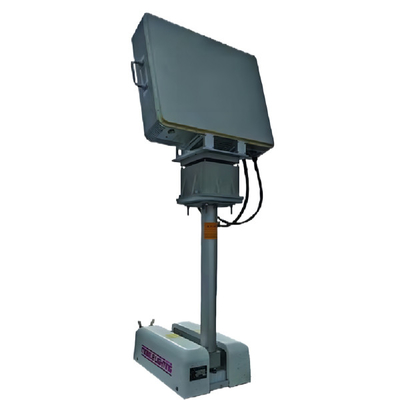

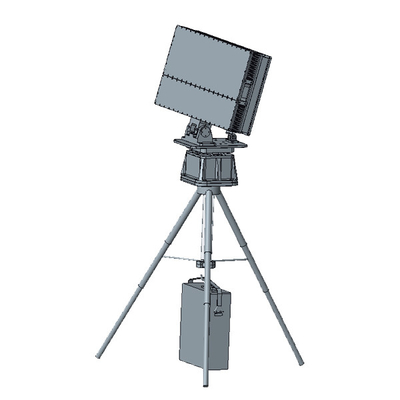

Phased Array Three Coordinate Border Radar System Ku Band Solid State Design

Product Description

LT-Ku07 Low Altitude Warning Radar

Product Introduction:

The LT-Ku07 one-dimensional phased array three coordinate radar is a lowaltitude surveillance and reconnaissance equipment, operating in the Ku bandThe radar adopts the AESA (active phased array)system. In the pitchdimension, phase scanning is used for scanning, while in the azimuth dimension, mechanical scanning is used for scanning to achieve 360 azimuth coverage. The entire machine adopts a modular and solid-state design to ensure equipment reliability.

Product Features :

1, Strong resistance to environmental clutter.
2, With the pitch adjustment device, can adjust the angle of the antenna,applicable to a variety of different geographical conditions.

3, Solved the technical problem of selecting multiple targets for trackingand recognizing targets in a background noise environment.

Parameter Name	Parameter Value
Radar System	Pitch 1D Active Phased Array + Azimuthal Mechanical Scanning
Operating Frequency Band	Ku Band
Scanning Range	Azimuth:0°-360°
Scanning Range	Pitch:0°-45°
Antenna Speed	60°/s
Detection Range (Pd=0.8,Pfa=10^-6)	5km(σ=0.01m²)


Blind Range	≤200m
Resolution	Range Resolution:10m
	Azimuth Resolution:2.5°
	Pitch Resolution:7°
Accuracy	Range Accuracy≤ 4m
	Azimuth Accuracy≤ 0.5°
	Pitch Accuracy≤ 0.5°
	Speed Accuracy≤1m/s
Target Radial Velocity	0.8m/s-40m/s
Target Tracking Capability	≥100 Batches
Transmit Power	160W
Front-end Equipment Size	Main unit:590mm475mm126mm
Weight	27kg(Main Unit)
