Name: 160W Active Phased Array Border Security Radar For Low Small And Slow Targets
Brand: CHENGDU RADARTONE TECHNOLOGY CO.,LTD
SKU: LT-X07
Availability: InStock

160W Active Phased Array Border Security Radar For Low Small And Slow Targets

1set

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Radar System: Pitch 1D Active Phased Array + Azimuthal Mechanical Scanning

Operating Frequency Band: X Band

Scanning Range: Azimuth:0°-360°,Pitch: -10°-40°(Design Value Of Electrical Scanning Range + 60°)

Antenna Speed: 12rpm/15rpm

Detection Range (Pd=0.8，Pfa=10-6): ≥5km(RCS=0.01m2),≥10km(RCS=0.1m2)，≥12km(RCS=1m2)

Blind Range: 180m

Highlight:

160W border security radar

border slow targets surveillance radar

low targets active phased array radar

Basic Infomation

Place of Origin: China

Brand Name: Radartone

Model Number: LT-X07

Payment & Shipping Terms

Delivery Time: 3.5 month

Payment Terms: T/T

Supply Ability: 50 set/3 momth

Gallery

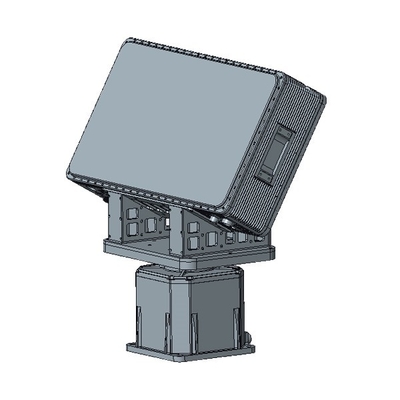

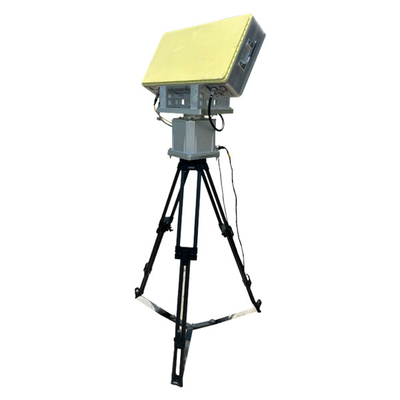

160W Active Phased Array Border Security Radar For Low Small And Slow Targets

Product Description

LT-X07 Low Altitude Warning Radar

Product Introduction:

The LT-X07 radar is a low-altitude surveillance and reconnaissance equipment that operating in the X-band. The radar detects and locates movingground targets, low-altitude helicopters, drones and maritime targets. The low-altitude security radar system can detect and extract target information incomplex environments with strong ground clutter, providing infomation support for combat personnel.

Product Features:

1, Strong resistance to environmental clutter.
2, Strong detection capability for low, small and slow targets.
3, With pitch adjustment device, applicable to a variety of differentgeographic conditions.
4, Solves the technical difficulties of tracking and recognizing multi-targetsin the background noisy environment.

Parameter Name	Parameter Value
Radar System	Pitch 1D Active Phased Array + Azimuthal Mechanical Scanning
Operating Frequency Band	X Band
Scanning Range	Azimuth:0°-360°
Scanning Range	Pitch:−10°-40°(Design Value of Electrical Scanning Range ± 60°)
Antenna Speed	12rpm/15rpm
Detection Range(Pd=0.8,Pfa=10^-6)	≥5km(RCS=0.01m²)
	≥10km(RCS=0.1m²)
	≥12km(RCS=1m²)
Blind Range	180m
Resolution	Range Resolution:10m
	Azimuth Resolution:3°
	Pitch Resolution:7°
Accuracy	Range Accuracy≤5m
	Azimuth Accuracy≤0.5°
	Pitch Accuracy≤0.5°
	Speed Accuracy≤0.4m/s
Target Radial Velocity	1m/s-80m/s
Target Tracking Capability	≥200 Batches
Transmit Power	160W
Front-end Equipment Size	700mm385mm160mm
Weight	≤30kg+22kg(Radar Front-end Equipment + Servo Turntable)

160W Active Phased Array Border Security Radar For Low Small And Slow Targets 0
