Name: AESA Ground Based Air Surveillance Radar Low Altitude For Border Security
Brand: CHENGDU RADARTONE TECHNOLOGY CO.,LTD
SKU: LT-Ku07A
Availability: InStock

AESA Ground Based Air Surveillance Radar Low Altitude For Border Security

1set

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Radar System: Azimuth Mechanical Machine Scanning, Pitch Phase Single Pulse Scanning, Active Phased Array

Operating Frequency Band: Ku Band

Scanning Range: Azimuth：0°-360°，Pitch：0°-40°

Antenna Speed: <6s

Detection Range（Pd=0.8，Pfa=10-6）: ≥5.5km（RCS：0.01m2，False Alarm Probability 10-4，Detection Probability 0.8）

Blind Range: ≤200m

Highlight:

border ground based air surveillance radar

aesa uav detection radar

border low altitude surveillance radar

Basic Infomation

Place of Origin: China

Brand Name: Radartone

Model Number: LT-Ku07A

Payment & Shipping Terms

Delivery Time: 3.5 month

Payment Terms: T/T

Supply Ability: 50 set/3 momth

Gallery

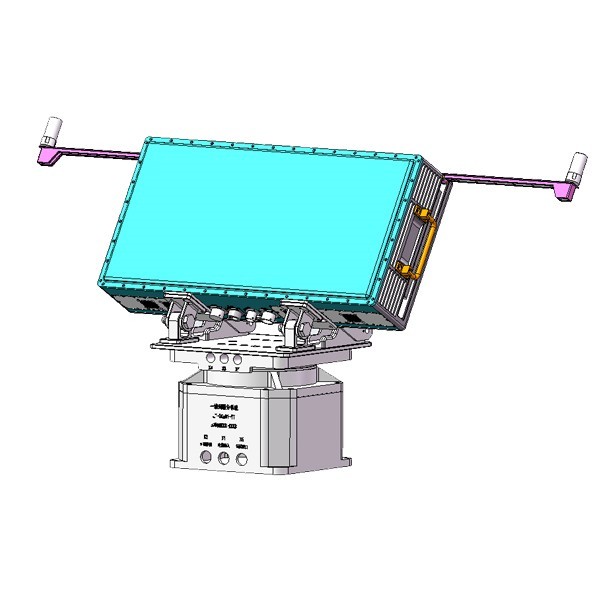

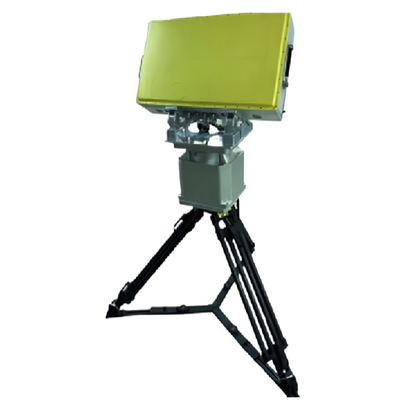

AESA Ground Based Air Surveillance Radar Low Altitude For Border Security

Product Description

LT-Ku07A Low Altitude Warning Radar

Product Introduction:

The LT-Ku7A one-dimensional three-coordinate phased array radar is a low-altitude surveillance and reconnaissance equipment, operating in the Ku band. This radar adopts the AESA (Active Phased Array) system. In the elevation dimension, phase scanning is used for scanning, while in the azimuth dimension, mechanical scanning is used for scanning to achieve 360 ° azimuth coverage. The entire machine adopts a modular and solid-state design to ensure equipment reliability.

Product Features:

1, Strong resistance to environmental clutter.
2, With a pitch adjustment device, can adjust the angle of the antenna, applicable to a variety of different geographical conditions.
3, Solves the technical difficulties of tracking and recognizing multi-targets in the background noisy environment.

Parameter Name	Parameter Value
Radar System	Azimuth Mechanical Machine Scanning, Pitch Phase Single Pulse Scanning, Active Phased Array
Operating Frequency Band	Ku Band
Scanning Range	Azimuth:0°-360°
Scanning Range	Pitch:0°-40°
Antenna Speed	≤6s
Detection Range (Pd=0.8,Pfa=10^-6)	≥5.5km(RCS:0.01m²,False Alarm Probability 10^-4,Detection Probability 0.8)


Blind Range	≤200m
Resolution	Range Resolution:≤10m
	Azimuth Resolution:≤3°
	Pitch Resolution:≤6°
	Minimum Detectable Speed:≤0.5m/s
Accuracy	Range Accuracy:≤5m
	Azimuth Accuracy:≤0.5°
	Pitch Accuracy:0.5°
	Speed Accuracy:≤0.1m/s (Tracking Mode)
Target Radial Velocity	0.8m/s-40m/s
Target Tracking Capability	≥200 Batches
Transmit Power	160W
Front-end Equipment Size	≤620mm230mm330mm
Weight	55KG
