LT-M10 Multi-Purpose Networked UAV (10kg Level) + LT-01D AI Three-Axis Series Photoelectric Lens (Optional)
Product Introduction:

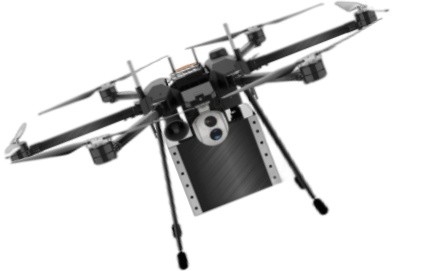

The LT-M10 is the latest six-rotor multi-purpose networked UAV. It supports direct application networking through 4G/5G or ad-hoc networks with cloud control platforms, and meets the application needs of more customers and scenarios through multi-task payload integration. With its superior performance, it has been widely used in fields such as investigation, delivery, search and rescue, command, inspection and logistics.

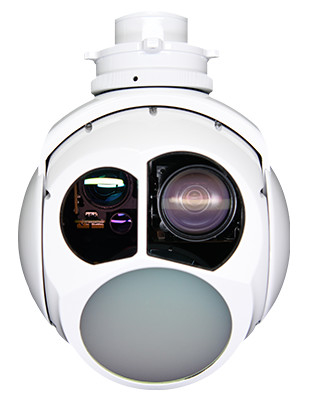

LT-01D is a two-axis three-light reconnaissance pod equipped with a high-precision two-axis stable platform and built-in 30x continuous zoom visible light camera, long-wave uncooled infrared imaging and laser rangefinder components. It has the functions of simultaneous visible light and infrared photography and recording, as well as laser ranging. Equipped with advanced AI algorithms, it can automatically detect and identify targets such as "people", "vehicles", "ships", etc. It has multi-target tracking function, anti-occlusion and anti-link delay function, and target re-capture function. It is mainly used in surveillance fields such as imaging, detection, recognition and tracking of ground targets, meeting the needs of line inspection, accident investigation, emergency rescue, law enforcement and evidence collection, anti-terrorism and riot control.
Parameter Name | Parameter Value |
Number of Rotors | 6 |
Diagonal Wheelbase | 1620mm |
Total Empty Weight (Including Battery and Parachute Components) |
31kg |
Maximum Effective Take-off Weight | 41kg |
Maximum Payload | 10kg |
Maximum Hover Time Without Load | 40min |
Maximum Hover Time at Full Load | 25min |
Smart Battery | 12S 28000mAh |
Maximum Power Consumption | 11350W |
Remote Control Distance | ≤15Km |
4G/5G Measurement and Control Distance | Infinite Distance |
Hovering Accuracy (Without RTK) | Horizontal ± 0.5 m, Vertical ± 1.5 m |
Hovering Accuracy (with RTK) | Horizontal ± 0.3m,Vertical ± 0.1m |
Maximum Operating Height | Ordinary Propeller <3000m,Plateau Propeller <5000m |
Maximum Wind Resistance | 15m/s (7 Level) |
Operating Temperature | -10℃-40℃ |
Overall Size (Unfolded) | 1710mm*1485mm*870mm |
Overall Size (Folded) | 680mm*580mm*870mm |
Parameter Name | Parameter Value |
Visible Light Zoom Camera | Wavelength:0.4μm~0.9μm |
Resolution Ratio:1920×1080 | |
Focal Length:f = 4.3mm~129mm | |
Horizontal Field of View Angle:63.7°~2.3° | |
Optical Zoom:30X | |
Detection Distance:People: 11.1km, Vehicle: 23km | |
Recognition Distance:People: 2.7km, Vehicle: 14km | |
Thermal Imaging | Operating Band:8~14μm |
Resolution Ratio:640×512 | |
Pixel Size:12µm | |
Focal Length:55mm/F1.2 | |
Viewing Angle:8°×6.4° | |
Laser Ranging | Operating Band:1535nm |
Laser Ranging Distance:4km~6km | |
Range Accuracy:≤1m | |
Ranging Frequency:1~10HZ | |
Servo Control | Heading Range:N×360° |
Pitch Range:-120°~40° | |
Accuracy:Angle Accuracy(1σ) ≤ 2mrad, Stability Accuracy (1σ) ≤ 100urad | |
Angular Velocity/Angular Acceleration:Maximum Angular Velocity ≥ 60 °/s, Maximum Angular Acceleration ≥ 150 °/s ² | |
System Parameter | Size:≤ф135mm×195mm |
Weight:≤1.25kg | |
Power Supply:24V | |
Power Waste:20W (Average), 60W (Peak) | |
Environmental Parameter | Operatng Temperature:-40 ℃~60 ℃ |
