LT-M6FC Customized UAV (15kg Level) + LT-01C AI Three-Axis Series Photoelectric Lens (Optional)
Product Introduction:
The LT-M6FC is a six-rotor networked UAV developed for customized needs. It supports direct networking of applications through 4G/5G or ad-hoc networks with cloud control platforms, and meets the application needs of more customers to integrate and mount various dedicated payloads by reserving standard and rich interfaces. With its superior performance, it has been widely used in fields such as investigation, delivery, search and rescue, command, inspection, and logistics.

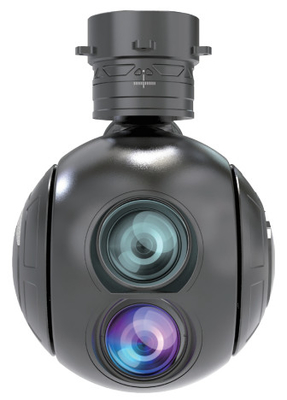

LT-01C is a three-axis gyroscope stabilized three-light gimbal designed for miniaturization, lightweight and integrated industrial use. It is equipped with a 30x continuous optical zoom visible light camera, a long-wave uncooled infrared imaging component, laser rangefinder, and built-in anti-delay module, AI target recognition, and multi-target tracking module. It is mainly used in monitoring fields such as imaging, detection, tracking and identification of ground targets, meeting the needs of line inspection, accident investigation, emergency rescue, law enforcement and evidence collection, counter-terrorism and riot control.
Parameter Name | Parameter Value |
Number of Rotors | 6 |
Flight Wheelbase | 1600mm |
Total Weight | 11kg (Without Battery) |
Maximum Take-off Weight | 35kg (with 4 Batteries) |
Payload | ≥15kg |
Maximum Level Flight Speed | 10m/s |
Hovering Accuracy |
Vertical Direction:±0.5m, Horizontal Direction±1.5m (GPS Compatible with Beidou) |
Flight Time | 30-60min |
Flight Distance | ≥10km |
Effective Control Radius | Ground Station 10km;Remote Control 1km |
Maximum Flight Altitude | 3000m |
Maximum Wind Resistance | 7 Level |
Multiple Control Modes |
Manual Stabilization, Automatic Takeoff/Landing, Attitude Stabilization/GPS Attitude Stabilization |
Security Control |
One Click Return, Out of Control Return, Low Battery Alarm, Data Black Box |
Aircraft Size (with Propeller Folded) | 986mm*610mm*856mm |
Operating Temperature | -10-40℃ |
Parameter Name | Parameter Value |
Visible Light Zoom Camera | Wavelength:0.4μm~0.9μm |
Resolution Ratio:1920×1080 | |
Focal Length:f = 4.3mm~129mm | |
Horizontal Field of View Angle:63.7°~2.3° | |
Optical Zoom:30X | |
Detection Distance:People: 6km, Vehicle: 15km | |
Recognition Distance:People: 2km, Vehicle: 8km | |
Thermal Imaging | Operating Band:8~14μm |
Resolution Ratio:640×512 | |
Pixel Size:12µm | |
Focal Length:35mm/F1.0 | |
Viewing Angle:12.4°×9.9° | |
Detection Distance:People: 1.7km, Vehicle: 5km | |
Recognition Distance:People: 0.4km, Vehicle: 1.2km | |
Servo Control | Heading Range:N×360° |
Pitch Range:-120°~40° | |
Rolling Range:-45°~45° | |
System Parameter | Size:≤ф120mm×171mm |
Weight:≤950g | |
Power Supply:12V | |
Power Waste:20W (Average), 50W (Peak) | |
Communication Interface:Serial Port, 100Mbps Network, SBUS | |
Video Interface:100Mbps Network | |
Single Target Tracking | Target Type:General Target |
Tracking Speed:≥32 Pixels/Frame | |
Update Frame Rate:≥50FPS | |
Multi Target Tracking | Target Type:People, Vehicles,Ships, Airplanes |
Recall Rate:≥90% | |
Accuracy Rate:≥80% | |
Minimum Target Size:32×32 @1080P | |
Tracking Target Quantity:≥20 | |
Tracking Jump Rate:≤15% | |
Update Frame Rate:≥20FPS | |
Video & Strorage | Photo Format:JPEG |
Video Format:MP4 | |
Encoding Format:H.264, H.265 | |
Video Protocols:TS, RTSP, RTMP, UDP, etc. | |
Storage:128GB | |
Environmental Parameter | Operatng Temperature:-20 ℃~60 ℃ |
Storage Temperature:-40 ℃~70 ℃ |
