Networked Six Rotor UAV Unmanned Aerial Vehicle , Multi Purpose Aerial Drones

1set
MOQ
Negotiable
Price
Networked Six Rotor UAV Unmanned Aerial Vehicle , Multi Purpose Aerial Drones
Features Gallery Product Description Request A Quote
Features
Specifications
Number Of Rotors: 6
Flight Wheelbase: 1600mm
Total Weight: 11kg (Without Battery)
Maximum Take-off Weight: 35kg (with 4 Batteries)
Payload: ≥15kg
Maximum Level Flight Speed: 10m/s
Highlight:

six rotor uav unmanned aerial vehicle

,

networked multi purpose aerial drones

,

networked uav unmanned aerial vehicle

Basic Infomation
Place of Origin: China
Brand Name: Radartone
Model Number: LT-M6FC + LT-01D
Payment & Shipping Terms
Delivery Time: 3 month
Payment Terms: T/T
Supply Ability: 50set/3month
Product Description

LT-M6FC Customized UAV (15kg Level) + LT-01D AI Three-Axis Series Photoelectric Lens (Optional)



Product Introduction:

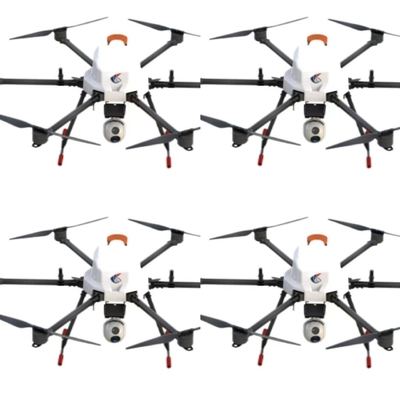

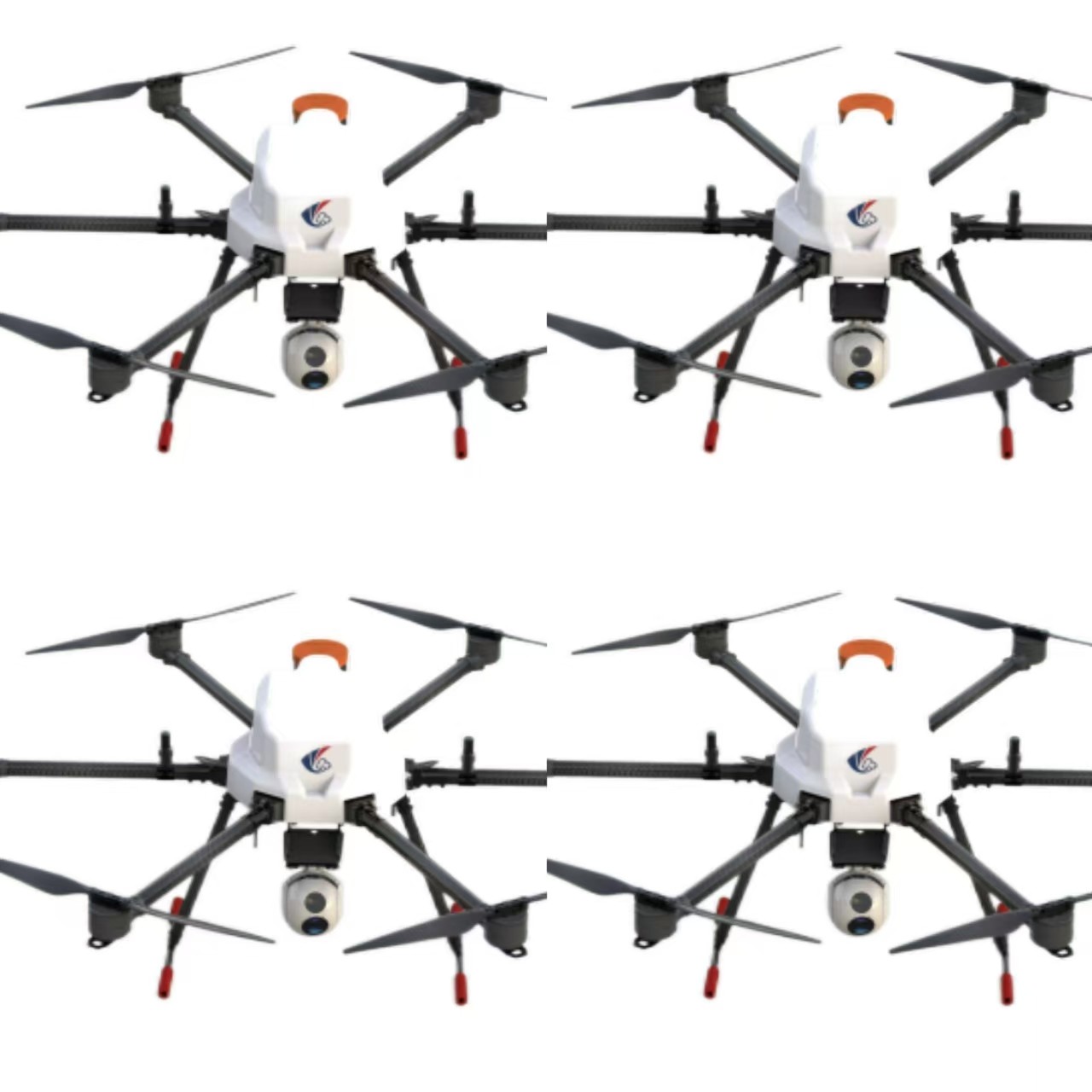

The LT-M6FC is a six-rotor networked UAV developed for customized needs. It supports direct networking of applications through 4G/5G or ad-hoc networks with cloud control platforms, and meets the application needs of more customers to integrate and mount various dedicated payloads by reserving standard and rich interfaces. With its superior performance, it has been widely used in fields such as investigation, delivery, search and rescue, command, inspection, and logistics.

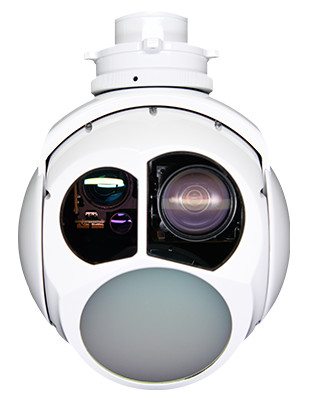

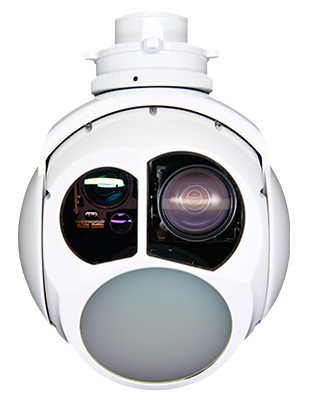

LT-01D is a two-axis three-light reconnaissance pod equipped with a high-precision two-axis stable platform and built-in 30x continuous zoom visible light camera, long-wave uncooled infrared imaging and laser rangefinder components. It has the functions of simultaneous visible light and infrared photography and recording, as well as laser ranging. Equipped with advanced AI algorithms, it can automatically detect and identify targets such as "people", "vehicles", "ships", etc. It has multi-target tracking function, anti-occlusion and anti-link delay function, and target re-capture function. It is mainly used in surveillance fields such as imaging, detection, recognition and tracking of ground targets, meeting the needs of line inspection, accident investigation, emergency rescue, law enforcement and evidence collection, anti-terrorism and riot control.



Parameter Name Parameter Value
Number of Rotors 6
Flight Wheelbase 1600mm
Total Weight 11kg (Without Battery)
Maximum Take-off Weight 35kg (with 4 Batteries)
Payload ≥15kg
Maximum Level Flight Speed 10m/s
Hovering Accuracy

Vertical Direction:±0.5m, Horizontal Direction±1.5m

(GPS Compatible with Beidou)

Flight Time 30-60min
Flight Distance ≥10km
Effective Control Radius Ground Station 10km;Remote Control 1km
Maximum Flight Altitude 3000m
Maximum Wind Resistance 7 Level
Multiple Control Modes

Manual Stabilization, Automatic Takeoff/Landing,

Attitude Stabilization/GPS Attitude Stabilization

Security Control

One Click Return, Out of Control Return,

Low Battery Alarm, Data Black Box

Aircraft Size (with Propeller Folded) 986mm*610mm*856mm
Operating Temperature -10-40℃



Parameter Name Parameter Value
Visible Light Zoom Camera Wavelength:0.4μm~0.9μm
Resolution Ratio:1920×1080
Focal Length:f = 4.3mm~129mm
Horizontal Field of View Angle:63.7°~2.3°
Optical Zoom:30X
Detection Distance:People: 11.1km, Vehicle: 23km
Recognition Distance:People: 2.7km, Vehicle: 14km
Thermal Imaging Operating Band:8~14μm
Resolution Ratio:640×512
Pixel Size:12µm
Focal Length:55mm/F1.2
Viewing Angle:8°×6.4°
Laser Ranging Operating Band:1535nm
Laser Ranging Distance:4km~6km
Range Accuracy:≤1m
Ranging Frequency:1~10HZ
Servo Control Heading Range:N×360°
Pitch Range:-120°~40°
Accuracy:Angle Accuracy(1σ) ≤ 2mrad, Stability Accuracy (1σ) ≤ 100urad
Angular Velocity/Angular Acceleration:Maximum Angular Velocity ≥ 60 °/s, Maximum Angular Acceleration ≥ 150 °/s ²
System Parameter Size:≤ф135mm×195mm
Weight:≤1.25kg
Power Supply:24V
Power Waste:20W (Average), 60W (Peak)
Environmental Parameter Operatng Temperature:-40 ℃~60 ℃
