Name: High Sensitivity Low Altitude Radar Drone Detection With 150m Blind Range
Brand: CHENGDU RADARTONE TECHNOLOGY CO.,LTD
SKU: LT-Ku06
Availability: InStock

High Sensitivity Low Altitude Radar Drone Detection With 150m Blind Range

1set

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Radar System: Azimuth Mechanical Scanning + Pitch FrequencyScanning

Operating Frequency Band: Ku Band

Target Radial Velocity: 1.5m/s-80m/s

Target Tracking Capability: ≥100 Targets

Scanning Range Pitch: 0°-40°

Scanning Range Azimuth: 360°

Highlight:

low altitude radar drone detection

border surveillance radar high sensitivity

150m blind range radar anti drone

Basic Infomation

Place of Origin: China

Brand Name: Radartone

Model Number: LT-Ku06

Payment & Shipping Terms

Delivery Time: 3.5 month

Payment Terms: T/T

Supply Ability: 50 set/3 momth

Gallery

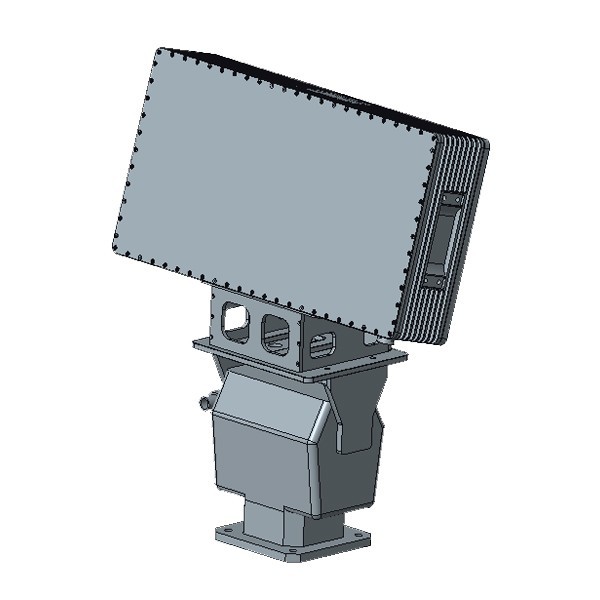

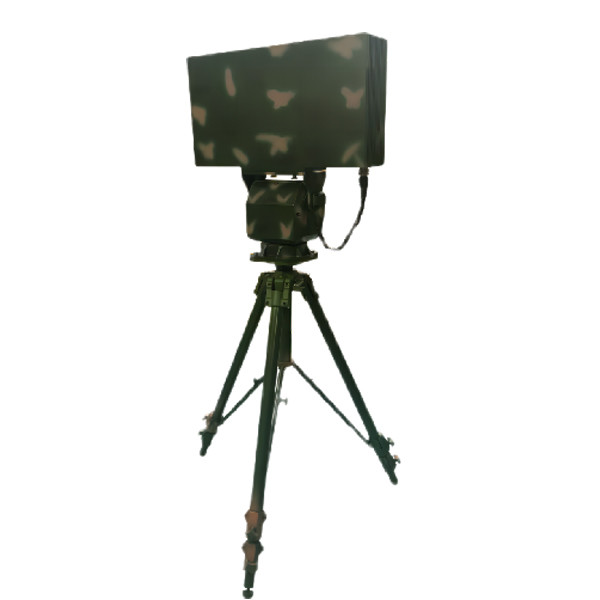

High Sensitivity Low Altitude Radar Drone Detection With 150m Blind Range

Product Description

LT-Ku06 Low Altitude Warning Radar

Product introduction:

LT-Ku06 radar is a low altitude alert detection equipment, operating in the Ku band. lt uses a wide-angle frequency scanning waveguide antenna with alinear frequency modulation pulse system, and is suitable for applications with full coverage of a single radar in the airspace. In the pitch dimension.frequency scanning technology is used instead of costly phased scanning technology, which is cost-effective.

Product Features:

1, High sensitivity and stable performance.
2, Strong resistance to anti-active jamming and anti-passive jamming.
3, High resolution and measurement accuracy.
4, Solve the technical bottleneck of some common radars at home andabroad that find it very difficult to discover low, small and slow targets.

Parameter Name	Parameter Value
Radar System	Azimuth Mechanical Scanning + Pitch Frequency Scanning
Operating Frequency Band	Ku Band
Scanning Range	Pitch:0°-40°
Scanning Range	Azimuth:360°
Antenna Speed	30°/s,60°/s
Detection Range (Pd=0.8,Pfa=10^-6)	≥3km(RCS=0.01㎡)


Blind Range	150m
Resolution	Range Resolution≤15m
	Azimuth Resolution≤2.5°
	Pitch Resolution≤10°
Accuracy	Range Accuracy≤10m
	Azimuth Accuracy≤0.5°
	Pitch Accuracy≤1°
	Speed Accuracy:1m/s
Target Radial Velocity	1.5m/s-80m/s
Target Tracking Capability	≥100 Targets
Transmit Power	80W
Front-end Equipment Size	610mm650mm120mm
Weight	≤17kg+12kg(Radar Front-end Equipment + Servo Turntable)

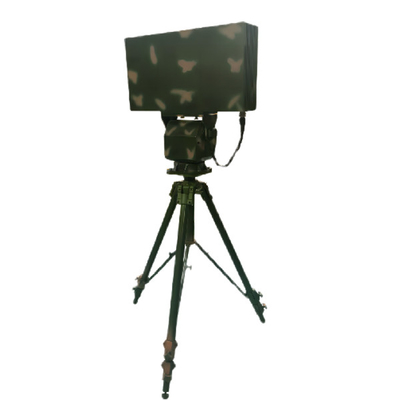

High Sensitivity Low Altitude Radar Drone Detection With 150m Blind Range 0
