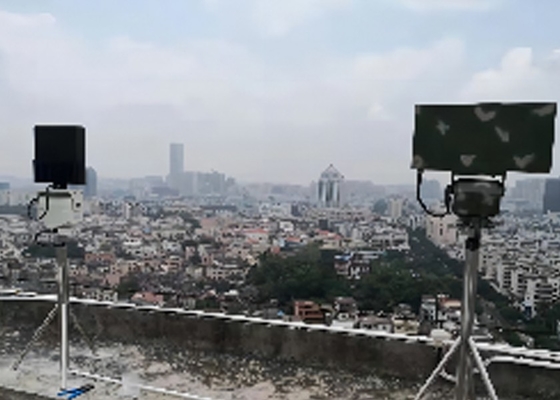

LT-Ku07 Low Altitude Warning Radar + LT-RFS30+ UAV Detection and Positioning Equipment (Optional)
Product Introduction:
The LT-Ku07 one-dimensional phased array three coordinate radar is a lowaltitude surveillance and reconnaissance equipment, operating in the Ku bandThe radar adopts the AESA (active phased array)system. In the pitchdimension, phase scanning is used for scanning, while in the azimuth dimension, mechanical scanning is used for scanning to achieve 360 azimuth coverage. The entire machine adopts a modular and solid-statedesign to ensure equipment reliability.
The UAV identification and positioning equipment is mainly used to detect and identify all kinds of UAV remote control and image transmission radio signals, and to measure direction and position. It achieves the tracking and marking of UAV trajectories, facilitates the operator to monitor the UAV situation in the protected area, and at the same time has the capability of reconnaissance and early warning, precise identification, black and white lists, the identification between friend or foe in the UAV precise control technology program, and early warning and alarm.
Product Features :
1, Strong resistance to environmental clutter.
2, With the pitch adjustment device, can adjust the angle of the antenna,applicable to a variety of different geographical conditions.
3, Solved the technical problem of selecting multiple targets for trackingand recognizing targets in a background noise environment.
4, The system found that the UAV had an effective range of both near and far, with a monitoring distance of 5,000 meters.
5, Direction finding accuracy≤3°.
6, With UAV and operator tracking capabilities to suit a variety of application environments.
7, Supports both stand-alone and networked (intersection positioning) modes of operation, providing excellent scalability.
8, Supports black and white list recognition of drones, distinguishing between friend and foe for precision strikes.
| Parameter Name |
Parameter Value |
| Radar System |
Pitch 1D Active Phased Array + Azimuthal Mechanical Scanning |
| Operating Frequency Band |
Ku Band |
| Scanning Range |
Azimuth:0°-360° |
| Pitch:0°-45° |
| Antenna Speed |
60°/s |
|
Detection Range
(Pd=0.8,Pfa=10-6)
|
5km(σ=0.01m²) |
| Blind Range |
≤200m |
| Resolution |
Range Resolution:10m |
| Azimuth Resolution:2.5° |
| Pitch Resolution:7° |
| Accuracy |
Range Accuracy≤ 4m |
| Azimuth Accuracy≤ 0.5° |
| Pitch Accuracy≤ 0.5° |
| Speed Accuracy≤1m/s |
| Target Radial Velocity |
0.8m/s-40m/s |
| Target Tracking Capability |
≥100 Batches |
| Transmit Power |
160W |
| Front-end Equipment Size |
Main unit:590mm*475mm*126mm |
| Weight |
27kg(Main Unit) |
| Parameter Name |
Parameter Value |
| Detection Frequency Range |
30MHz-6000MHz |
| Focus Bands: 0.4,0.9,1.4,2.4,5.2,5.8GHz |
| Detection Method |
Passive Radio Auto-detection, Passive Signal Reception |
| Detection Distance |
3km(Range Varies by Model, UAV Transmit Power >0.1W) |
| Detection Range |
Omnidirectional Detection |
| Number of Target Detections |
Simultaneous detection of over 20 UAVs |
| Simultaneous positioning of over 6 UAVs |
| Accuracy |
Direction Finding Accuracy≤1.5° |
| Positioning Accuracy≤10m |
| Detection Success Rate |
≥98% |
| Detection Response Time |
≤3s |
| Size |
215mm*280mm |
| Weight |
≤3kg |
| Ingress Protection |
IP67 |
| Usage |
4 or more devices are networked for use |
