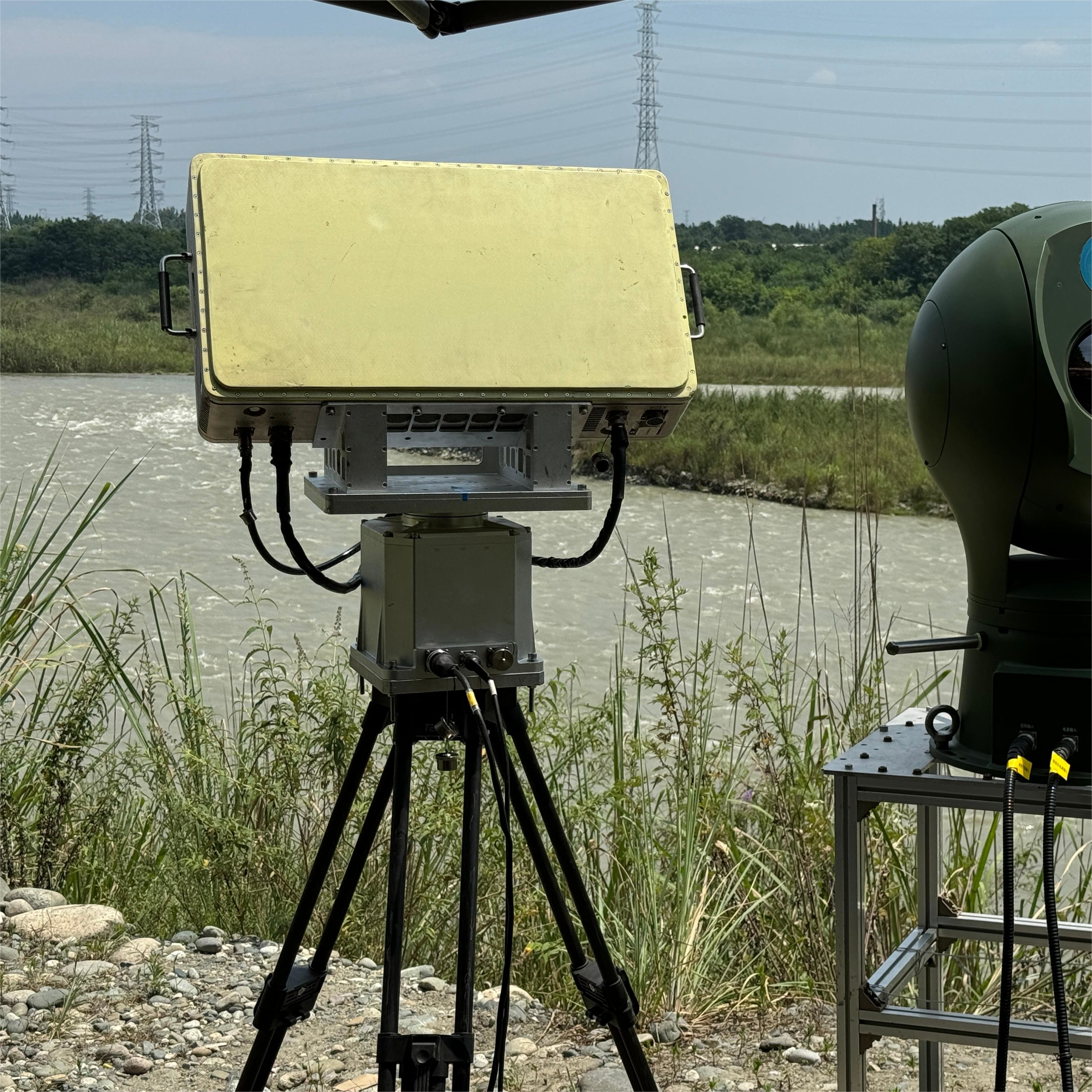

LT-X07A Low Altitude Warning Radar + LT-RFS30+ UAV Detection and Positioning Equipment (Optional)
Product Introduction:
The LT-X07A radar is a low-altitude surveillance and reconnaissance equipment thatsearches and tracks moving ground targets, low-altitude helicopters, missiles, UAVs, andsea surface targets, and can perfomm preliminary classification and recognition. The LT-X07Aradar adopts an active phased array radar system with elevation dimension and azimuthmechanical scanning, Pitch single pulse angle measurement, suitable for single radar fullazimuth coverage. The low alitude security radar system can detect and extract targetinformation in complex environments with strong ground clutter, providing informationsupport for combat personnel.
The UAV identification and positioning equipment is mainly used to detect and identify all kinds of UAV remote control and image transmission radio signals, and to measure direction and position. It achieves the tracking and marking of UAV trajectories, facilitates the operator to monitor the UAV situation in the protected area, and at the same time has the capability of reconnaissance and early warning, precise identification, black and white lists, the identification between friend or foe in the UAV precise control technology program, and early warning and alarm.
Product Features:
1, Strong resistance to environmental clutter.
2, Strong ability to detect small and slow targets.
3, With a pitch adjustment device, can adjust the angle of the antenna, applicable to a variety of different geographical conditions.
4, Solves the technical difficulties of tracking and recognizing multi-targets in the background noisy environment.
5, The system found that the UAV had an effective range of both near and far, with a monitoring distance of 5,000 meters.
6, Direction finding accuracy≤3°.
7, With UAV and operator tracking capabilities to suit a variety of application environments.
8, Supports both stand-alone and networked (intersection positioning) modes of operation, providing excellent scalability.
9, Supports black and white list recognition of drones, distinguishing between friend and foe for precision strikes.
| Parameter Name |
Parameter Value |
| Radar System |
Pitch 1D Active Phased Array + Azimuthal Mechanical Scanning |
| Operating Frequency Band |
X Band |
| Scanning Range |
Azimuth:0°-360° |
| Pitch:0°-60° |
| Antenna Speed |
Maximum 90 °/s |
|
Detection Range
(Pd=0.8,Pfa=10-6)
|
RCS=0.01m2 7km |
| Blind Range |
240m |
| Resolution |
Range Resolution:15m |
| Azimuth Resolution:3° |
| Pitch Resolution:6° |
| Accuracy |
Range Accuracy≤10m |
| Azimuth Accuracy≤0.5° |
| Pitch Accuracy≤0.6° |
| Target Radial Velocity |
10-1000m/s |
| Target Tracking Capability |
≥200 Batches |
| Transmit Power |
320w |
| Front-end Equipment Size |
≤610mm*650mm*120mm |
| Weight |
≤25kg+15kg(Radar Front-end Equipment + Servo Turntable) |
| Parameter Name |
Parameter Value |
| Detection Frequency Range |
30MHz-6000MHz |
| Focus Bands: 0.4,0.9,1.4,2.4,5.2,5.8GHz |
| Detection Method |
Passive Radio Auto-detection, Passive Signal Reception |
| Detection Distance |
3km(Range Varies by Model, UAV Transmit Power >0.1W) |
| Detection Range |
Omnidirectional Detection |
| Number of Target Detections |
Simultaneous detection of over 20 UAVs |
| Simultaneous positioning of over 6 UAVs |
| Accuracy |
Direction Finding Accuracy≤1.5° |
| Positioning Accuracy≤10m |
| Detection Success Rate |
≥98% |
| Detection Response Time |
≤3s |
| Size |
215mm*280mm |
| Weight |
≤3kg |
| Ingress Protection |
IP67 |
| Usage |
4 or more devices are networked for use |
